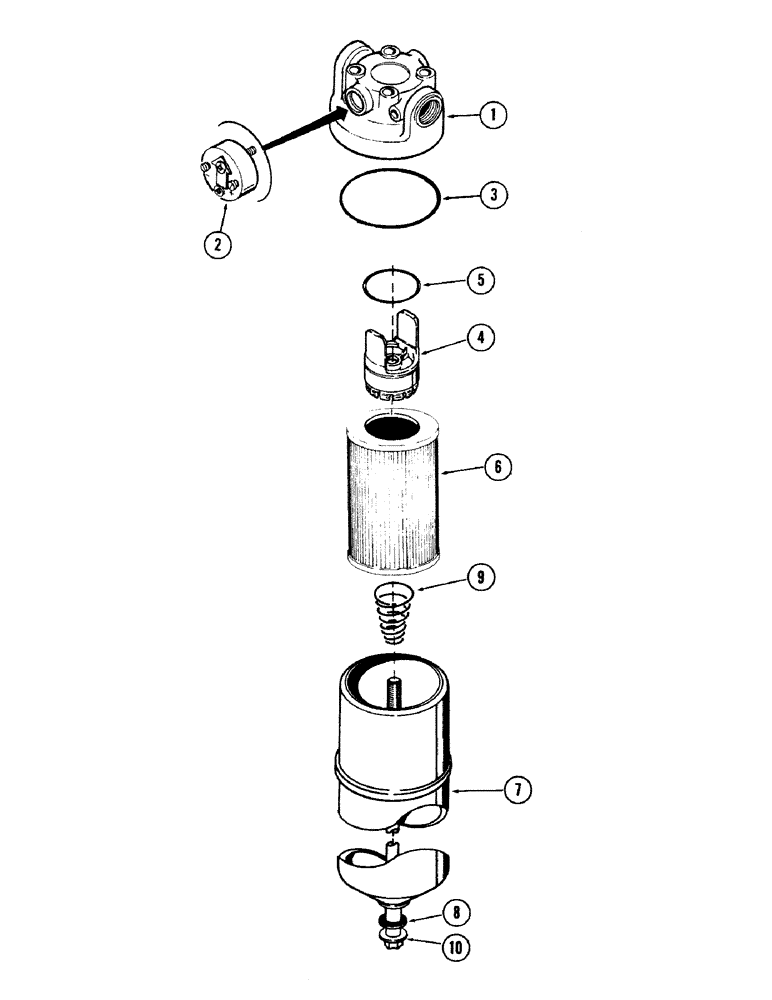

Запчасти Case 40 (208) - HYDRAULIC OIL FILTER (35) - HYDRAULIC SYSTEMS

S616066

FILTER

- hydraulic oil, Includes: Ref. 1 - 10

2шт.

1

S239990

HEAD ASSY.

HEAD ASSY, Includes: Ref. 2 and 3

1шт.

2

S104920

BRACKET

INDICATOR

1шт.

3

S107789

O-RING

1шт.

4

S107803

VALVE

bypass, Includes: Ref. 5

1шт.

5

S107967

O-RING,2.109" ID x 0.139" Width

1шт.

6

S111605

ELEMENT

1шт.

7

S113853

HOUSING

1шт.

8

S107793

SEALING WASHER

WASHER

1шт.

9

S104930

SPRING

1шт.

10

S111607

BOLT

1шт.

11

S111118

ELEMENT

- (Use to flush hydraulic system) - (Not illustrated)

1шт.
