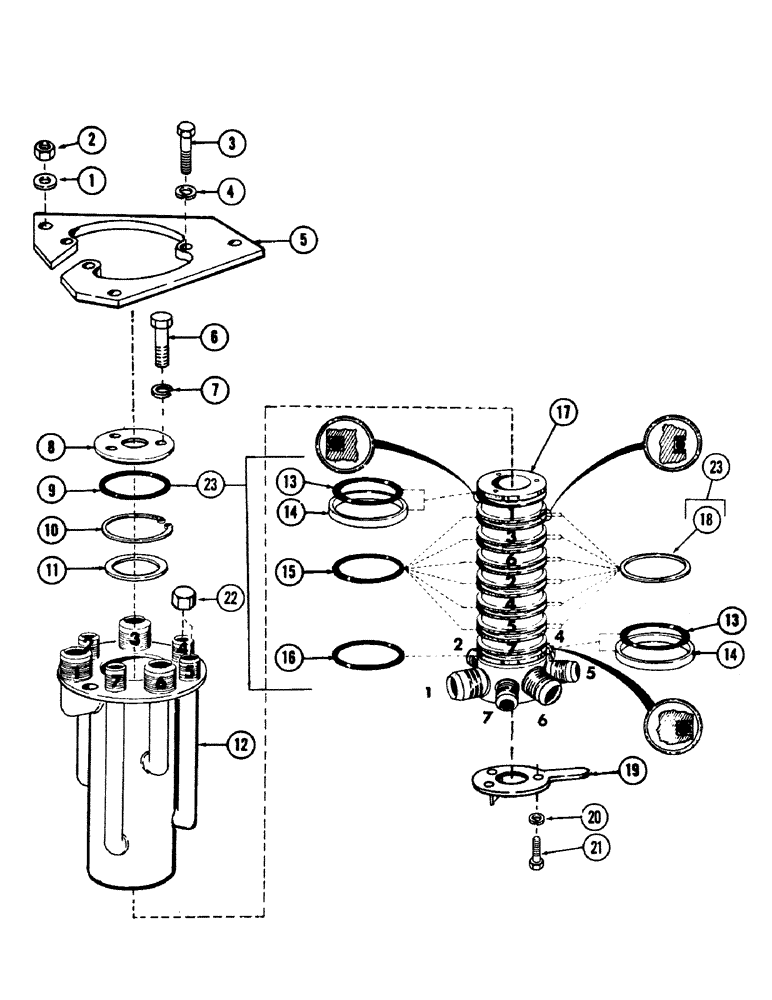

Запчасти Case 40 (206) - 7-PORT SWIVEL AND ATTACHING PARTS (35) - HYDRAULIC SYSTEMS

1

195-104

WASHER,3/8"

plain - 7/16"

3шт.

2

131-52

NUT,3/8"-16, GC

NUT - 3/8" NC

3шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

S204101

PLATE

upper - swivel mounting

1шт.

S57973

LINK

SWIVEL, 7-port hydraulic, Includes: Ref. 6 - 18

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

S203821

CAP

bearing

1шт.

9

S76241

O-RING

"O" RING

1шт.

Part of seal kit, P/N S210212

1шт.

10

S15194

SNAP RING

RING, retaining

1шт.

11

S203832

WASHER

bearing

1шт.

12

S57975

ASSEMBLY

HOUSING, swivel

1шт.

13

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

"O" RING

2шт.

Part of seal kit, P/N S210212

1шт.

14

S80705

SEAL

slipper

2шт.

Part of seal kit, P/N S210212

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 3.984" ID x 4.250" OD

6шт.

Part of seal kit, P/N S210212

1шт.

16

S76240

O-RING

"O" RING

1шт.

Part of seal kit, P/N S210212

1шт.

17

S57974

ASSEMBLY

SHAFT, swivel

1шт.

18

S76928

WASHER

back up

18шт.

Part of seal kit, P/N S210212

1шт.

19

S237399

LARGE PLATE

PLATE, lower - swivel mounting

1шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

- (3/4" tube) - 1-1/16" - 12 female - 37 degree flared - (Used) on ports 4 and 5 on units without optional leveler)

2шт.

23

S210212

SEAL KIT

KIT, seal - Includes: Ref. 9, 13 thru 16, 18

1шт.
