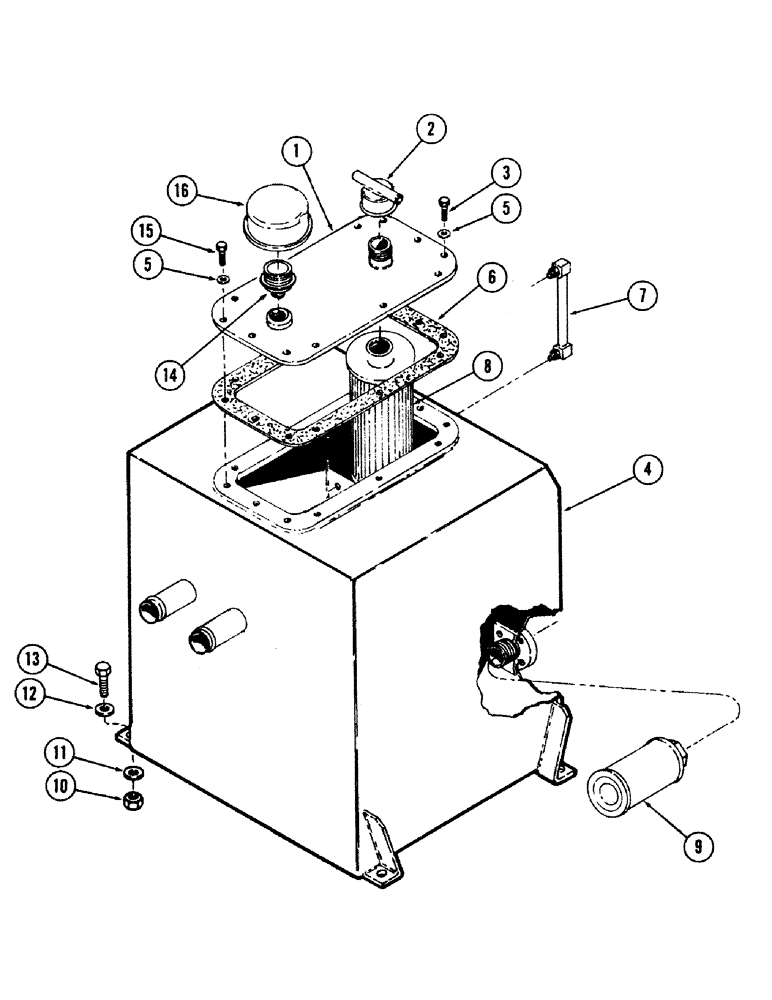

Запчасти Case 40 (204) - HYDRAULIC OIL TANK AND RELATED PARTS (35) - HYDRAULIC SYSTEMS

S616149

TANK

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 4

1шт.

1

S236359

COVER

- tank

1шт.

2

S230688

CAP

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

S616150

TANK

- hydraulic oil

1шт.

5

195-102

WASHER,1/4"

- flat, 5/16"

12шт.

6

S230621

GASKET

1шт.

7

S107269

GAUGE

- oil level

1шт.

8

S107379

FILTER, ENGINE OIL

STRAINER

1шт.

9

S117479

FILTER CARTRIDGE

DIFFUSER

2шт.

10

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - self locking, 3/8" NC

4шт.

11

195-104

WASHER,3/8"

- flat, 7/16" (Used as shims)

1шт.

12

195-104

WASHER,3/8"

- flat, 7/16"

4шт.

13

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

14

S115101

ADAPTER

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

16

S115102

AIR CLEANER

BREATHER

1шт.
