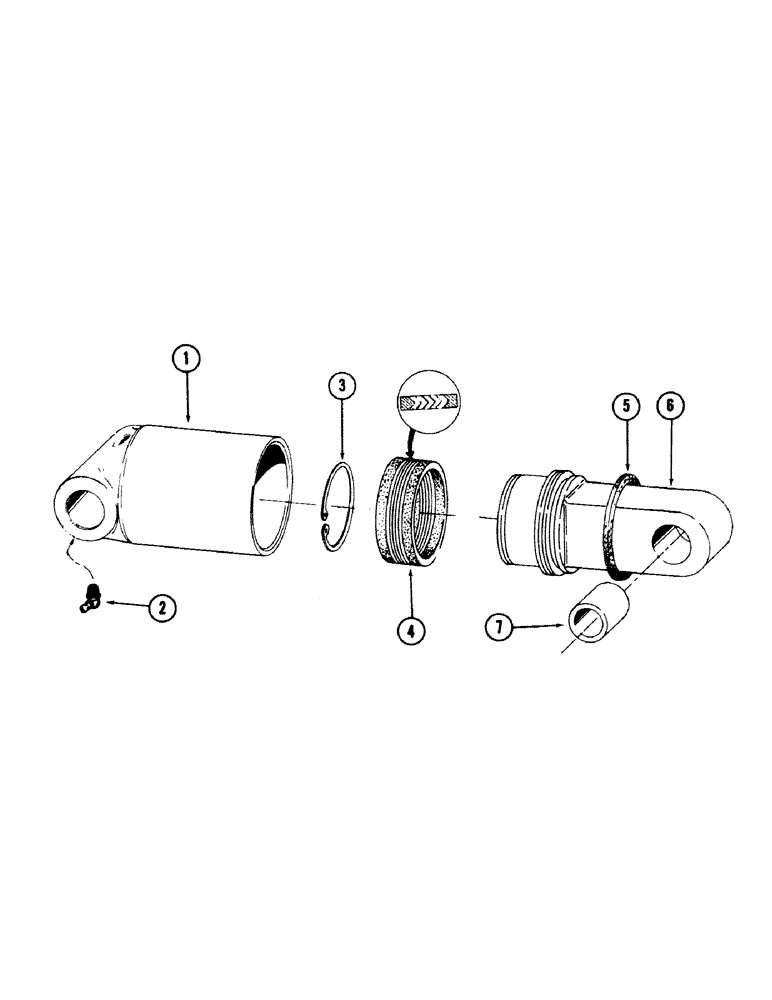

Запчасти Case 40 (202) - LEVELER CYLINDER, (6.25" ID X 4.70" STROKE) (35) - HYDRAULIC SYSTEMS

S56810

CYLINDER

leveler, Includes: Ref. 1 - 7

2шт.

1

S211166

TUBE,9.75" L

cylinder

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

H756064

SNAP RING,#500, 4.692", Ext

RING, retaining

1шт.

4

S209061

SEAL ASSY.

V-RING CUP ASSEMBLY

1шт.

5

S64146

SEAL

RING, wiper - felt

1шт.

6

S211136

PISTON ASSY.

ROD WITH PISTON ASSEMBLY, Includes: Ref. 6

1шт.

7

S202130

THREADED BUSHING

BUSHING

1шт.
