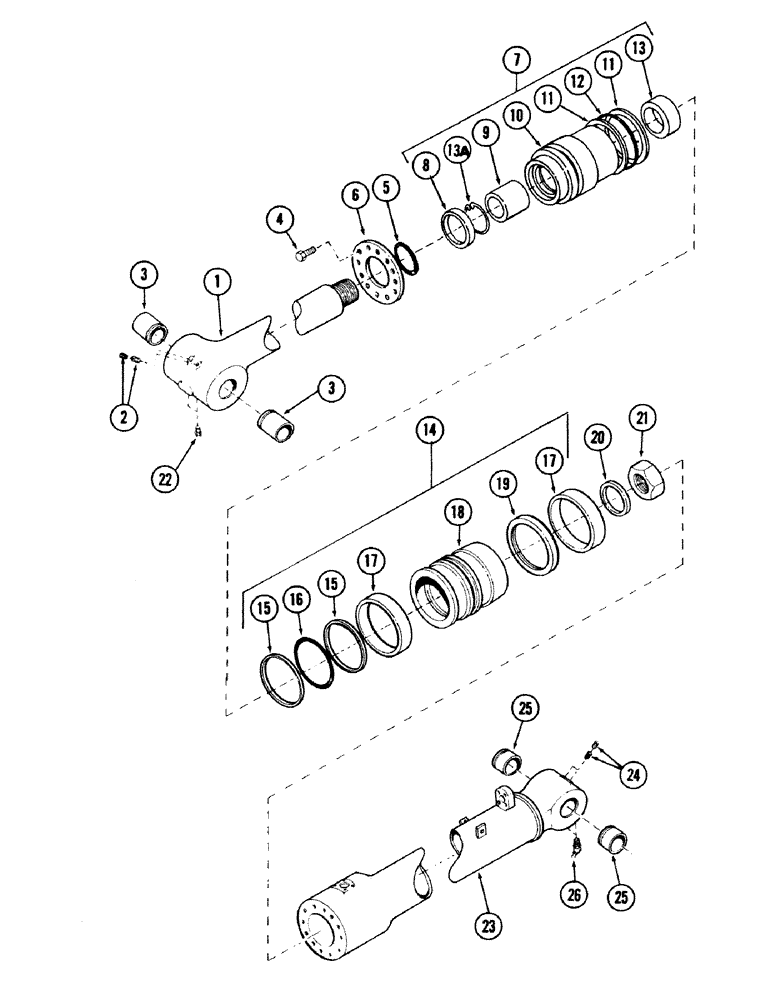

Запчасти Case 40 (196) - HOIST CYLINDER, (6.50" ID X 54.50" STROKE) (35) - HYDRAULIC SYSTEMS

S955896

CYLINDER - hoist, Includes: Ref. 1 - 26

1шт.

1

S511566

ROD

Includes: Ref. 2 and 3

1шт.

2

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set (Top)

2шт.

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set (Bottom)

2шт.

3

S234899

BUSHING

2шт.

4

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

12шт.

5

G104140

SHIM

O-RING

12шт.

6

S511562

PLATE

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - (Order G104651), Includes: Ref. 8 - 13A

1шт.

8

S108245

WIPER SEAL

WIPER - rod

1шт.

Part of seal repair kit, P/N G104671

1шт.

9

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BEARING - nylon

1шт.

Part of seal repair kit, P/N G104671

1шт.

10

G104654

GLAND

1шт.

11

G102582

BACK-UP RING

RING - back up

1шт.

Part of seal repair kit, P/N G104671

1шт.

12

G102868

O-RING,6.984" ID x 7.262" OD

2шт.

Part of seal repair kit, P/N G104671

1шт.

13

S109921

SEAL

- rod

1шт.

Part of seal repair kit, P/N G104671

1шт.

13a

S115909

RING, SNAP

RING - snap

1шт.

14

S232680

PISTON

ASSEMBLY, Includes: Ref. 15 - 21

1шт.

15

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

Part of seal repair kit, P/N G104671

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal repair kit, P/N G104671

1шт.

17

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

Part of seal repair kit, P/N G104671

1шт.

18

S511568

PISTON

1шт.

19

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

Part of seal repair kit, P/N G104671

1шт.

20

S109535

WASHER

1шт.

21

S232681

NUT

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" NPT (Straight)

2шт.

23

S611331

TUBE,6.5" DIA x 68.7" L

Includes: Ref. 24 and 25

1шт.

24

83-610

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set (Top)

2шт.

178-56

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set (Bottom)

2шт.

25

S234899

BUSHING

2шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

27

G104651

GLAND

ASSY - (Includes Ref. 7 thru 13A)

1шт.

28

G104671

KIT

- seal repair (Includes Ref. 8, 9, 11, 12, 13, 15, 16, 17 and 19)

1шт.

SEE SERVICE BULLETIN 44-82 FOR ADDITIONAL INFO RE: THE HEAVY WALL TUBE W/1 PIECE GLAND & BUFFER SEAL. SEAL KIT G105296 & BUFFER SEAL G104966 ARE MENTIONED IN THE BULLETIN.by bb10/26/95

1шт.
