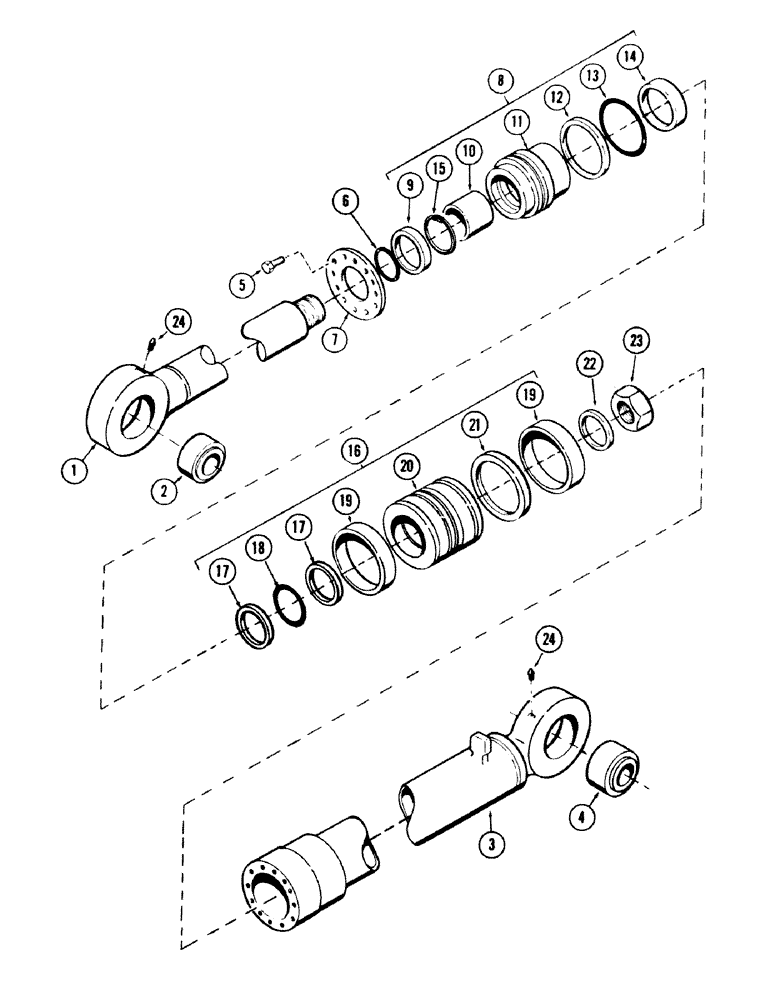

Запчасти Case 40 (194) - CROWD CYLINDER, (6.50" ID X 47.5" STROKE), (USED WITH "Y" BOOM) (35) - HYDRAULIC SYSTEMS

S955921

CYLINDER

- crowd, Includes: Ref. 1 - 24

1шт.

1

S513422

ROD

Includes: Ref. 2

1шт.

2

S104419

BUSHING

1шт.

3

S611323

TUBE,0.5" DIA x 64.2" L

Includes: Ref. 4

1шт.

4

S104419

BUSHING

1шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

12шт.

6

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING

1шт.

SHOULD USE G104140

1шт.

7

S511562

PLATE

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - (Order G104650), Includes: Ref. 9 - 15

1шт.

9

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER - rod

1шт.

Part of seal repair kit, P/N G104673

1шт.

10

S111813

SLEEVE ASSY

BEARING - nylon

1шт.

Part of seal repair kit, P/N G104673

1шт.

11

NSS

NOT SOLD SEPARAT

GLAND - (Order G104650 gland assy)

1шт.

12

G102582

BACK-UP RING

WASHER - back up

1шт.

13

G102868

O-RING,6.984" ID x 7.262" OD

"O" RING

1шт.

Part of seal repair kit, P/N G104673

1шт.

14

S220044

ROD

SEAL - rod

1шт.

Part of seal repair kit, P/N G104673

1шт.

15

S115908

RING, SNAP

RING - snap

1шт.

16

S115703

PISTON

ASSEMBLY, Includes: Ref. 17 - 21

1шт.

17

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- back up

2шт.

Part of seal repair kit, P/N G104673

1шт.

18

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING

1шт.

19

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

Part of seal repair kit, P/N G104673

1шт.

20

S513950

PISTON

1шт.

21

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

Part of seal repair kit, P/N G104673

1шт.

22

S109535

WASHER

1шт.

23

S232681

NUT

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease - 1/8" NPT - (Straight)

2шт.

25

G104650

GLAND

ASSY - (Includes Ref. 8 thru 15)

1шт.

26

G104673

KIT

- seal repair - (Includes Ref. 9, 10, 13, 14, 17 thru 19 and 21)

1шт.
