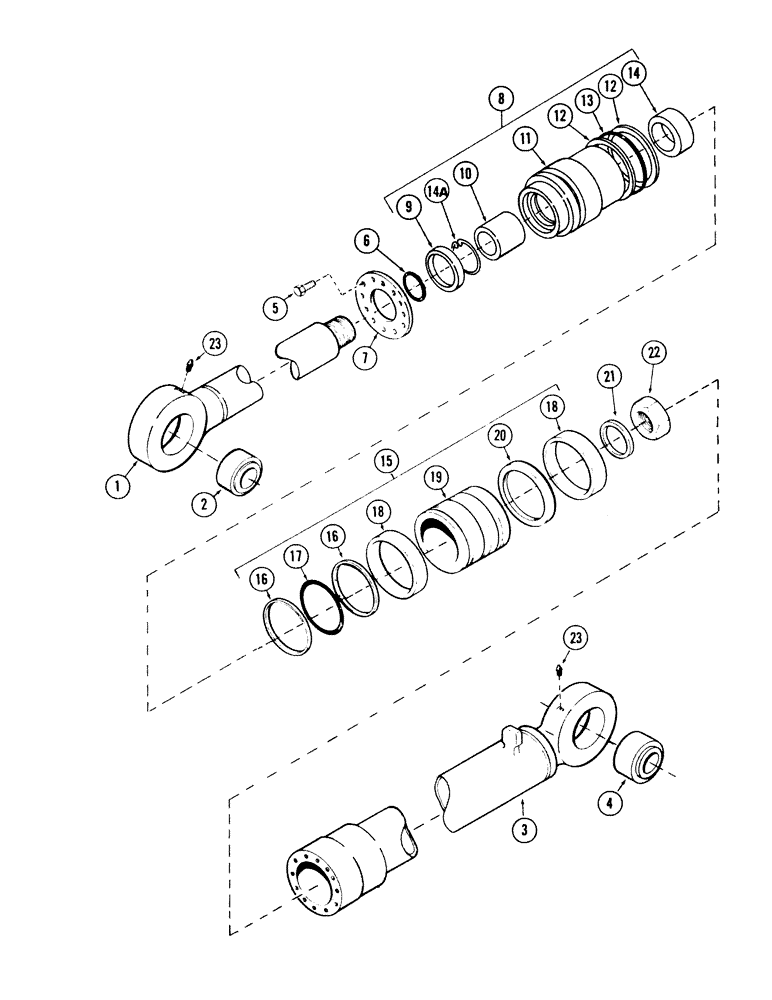

Запчасти Case 40 (192) - CROWD CYLINDER, (6.50" ID X 47.50" STROKE), (USED WITH "E" BOOM) (35) - HYDRAULIC SYSTEMS

S955897

CYLINDER

- crowd, Includes: Ref. 1 - 22

1шт.

1

S611327

ROD

Includes: Ref. 2

1шт.

2

S104419

BUSHING

1шт.

3

S611323

TUBE,0.5" DIA x 64.2" L

Includes: Ref. 4

1шт.

4

S104419

BUSHING

1шт.

5

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

12шт.

6

G104140

SHIM

O-RING

1шт.

7

S511562

PLATE

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - (Order G104651), Includes: Ref. 9 - 14A

1шт.

9

S108245

WIPER SEAL

WIPER - rod

1шт.

Part of seal repair kit, P/N G104671

1шт.

10

S234898

NYLON BEARING,101.6mm ID x 111mm OD x 75.95mm L

BEARING - nylon

1шт.

Part of seal repair kit, P/N G104671

1шт.

11

G104654

GLAND

1шт.

12

G102582

BACK-UP RING

RING - back up

2шт.

Part of seal repair kit, P/N G104671

1шт.

13

G102868

O-RING,6.984" ID x 7.262" OD

1шт.

Part of seal repair kit, P/N G104671

1шт.

14

S109921

SEAL

- rod

1шт.

Part of seal repair kit, P/N G104671

1шт.

14a

S115909

RING, SNAP

RING - snap

1шт.

15

S232680

PISTON

ASSEMBLY, Includes: Ref. 16 - 20

1шт.

16

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

2шт.

Part of seal repair kit, P/N G104671

1шт.

17

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal repair kit, P/N G104671

1шт.

18

S109539

WEAR RING,Split, 158.75mm ID x 165.1mm OD x 38.1mm Thk

RING, WEAR

2шт.

Part of seal repair kit, P/N G104671

1шт.

19

S511568

PISTON

1шт.

20

S228607

SEAL,145.16mm ID x 166.85mm OD x 9.32mm Thk

SEAL

1шт.

Part of seal repair kit, P/N G104671

1шт.

21

S109535

WASHER

1шт.

22

S232681

NUT

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grese, 1/8" NPT (Straight)

2шт.

24

G104651

GLAND

ASSY - (Includes Ref. 8 thru 14A)

1шт.

25

G104671

KIT

- seal repair (Includes Ref. 9, 10, 12 - 14, 16 - 18 and 20)

1шт.
