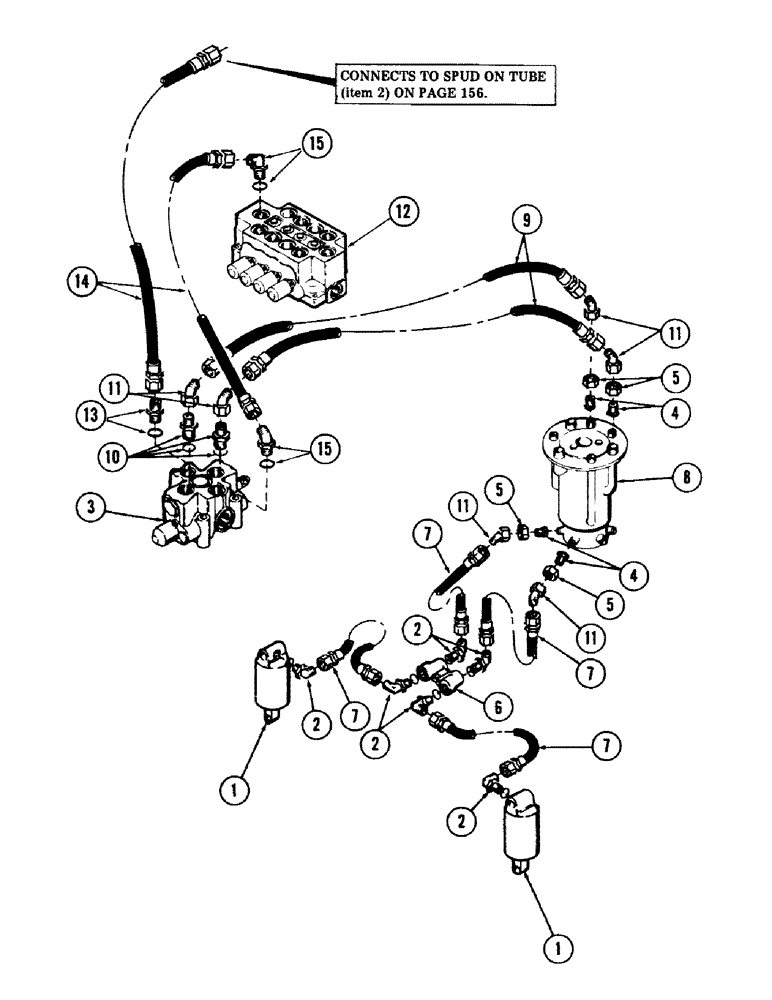

Запчасти Case 40 (190) - LEVELER TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see Figure 202)

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - female - 37 degree flared

6шт.

3

REF

INSTRUCTION

VALVE, 1-spool main control - (For breakdown, see Figure 232)

1шт.

4

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" to 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

4шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - (3/4" tube) - 1-1/16" - 12 female

4шт.

6

REF

INSTRUCTION

VALVE, check - (For breakdown, see Figure 220)

1шт.

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5 (Valve mounting)

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

195-102

WASHER,1/4"

flat - 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

7

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

4шт.

8

REF

INSTRUCTION

SWIVEL, 7-port - (For breakdown, see Figure 206)

1шт.

9

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

10

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1/2" tube) - 1-5/16" - 12 male x 3/4" - 16 male - 37 degree flared

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

11

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

45 degree - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

6шт.

ANOTHER ELBOW USED (NOT A SUB) USE 218-5230.

1шт.

12

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see Figure 238)

1шт.

13

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

3шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

15

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

2шт.

Part no. 218-5140 is a 45 degree elbow. The other reference to 15 shows a 90 degree elbow the part no. is 218-5110.

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.
