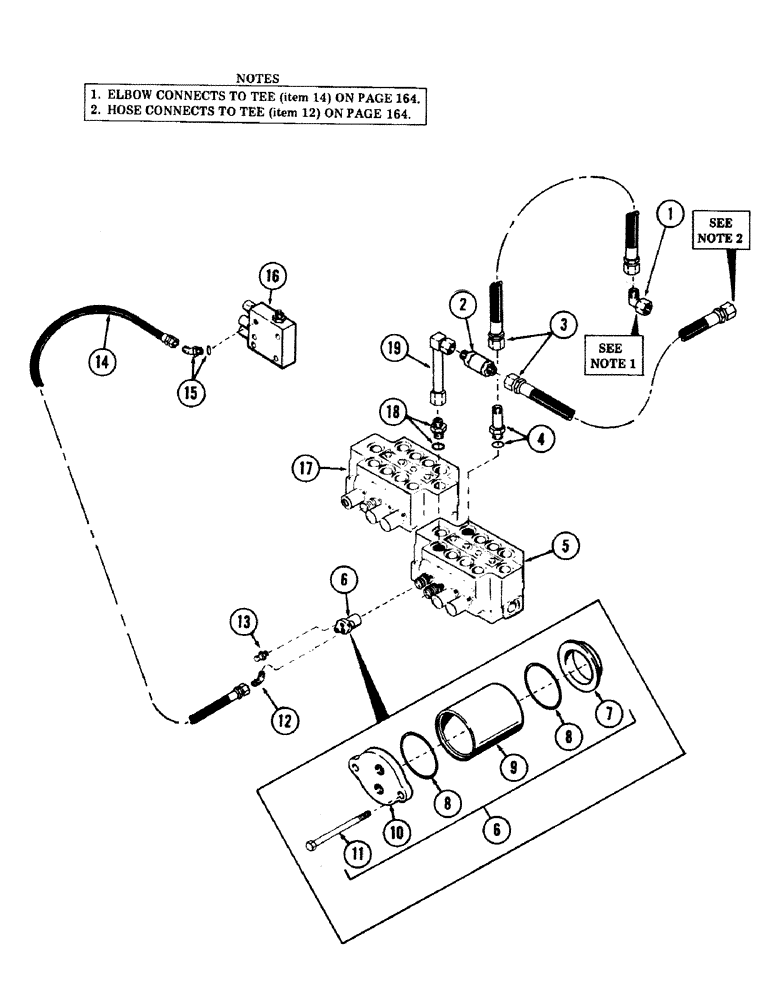

Запчасти Case 40 (186) - FAST HOIST TUBING (35) - HYDRAULIC SYSTEMS

1

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

1шт.

2

S93154

VALVE

check

1шт.

3

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

4

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, straight - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

5

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 234)

1шт.

6

S232345

KIT

spool end cap, Includes: Ref. 7 - 11

1шт.

7

S111267

WASHER

1шт.

8

S6394

O-RING

"O" RING

2шт.

9

S111268

SLEEVE

TUBE, cylinder

1шт.

10

S111269

HEAD

1шт.

11

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

BOLT - 3/8" NC x 3-1/4" Gr 8

2шт.

12

218-1094

ELBOW,45 Degree, 9/16-18" NPTF x 1/8"-27 37 Degree

45 degree adapter - (3/8" tube) - 9/16" - 18 male x 1/8" NPT male - 37 degree flared

1шт.

13

D46258

PLUG

SCREW, bleeder

1шт.

14

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)

1шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

REF

INSTRUCTION

VALVE, solenoid monoblock - (For breakdown, see Figure 224)

1шт.

17

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 236 or 238)

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

19

S234974

TUBE, hydraulic 1" OD x 4.06" L

1шт.

20

S93154

VALVE

check

1шт.
