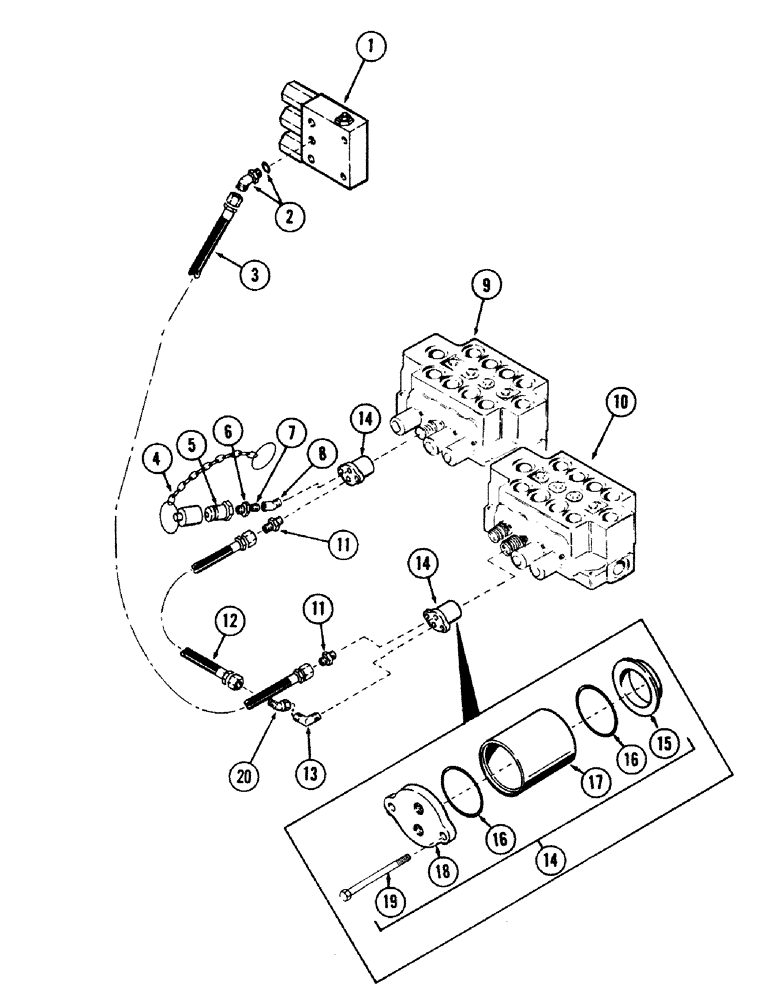

Запчасти Case 40 (184) - DRIVE LOCK TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, solenoid monoblock - (For breakdown, see Figure 224)

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

3

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)

1шт.

4

S206608

CAP

dust

1шт.

5

S206607

DISC

ONNECT, quick

1шт.

6

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING, reducer - 1/4" NPT male x 1/8" NPT female

1шт.

7

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" NPT male x 3/4" long

1шт.

8

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

9

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 236 or 238)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 234)

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, (3/8" tube) 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

12

S227395

HOSE

high pressure - 3/8" ID x 21" long - (With 9/16" - 18 female pressed on couplings)

1шт.

13

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90 degree - (3/8" tube) - 9/16" - 18 male x 1/8" NPT male - 37 degree flared

1шт.

14

S232345

KIT

spool end cap, Includes: Ref. 15 - 19

2шт.

15

S111267

WASHER

1шт.

16

S6394

O-RING

"O" RING

2шт.

17

S111268

SLEEVE

TUBE, cylinder

1шт.

18

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

HEAD

1шт.

SHOULD USE S111269

1шт.

19

S95658

BOLT

- 3/8" NC x 3-1/4" Gr 8

2шт.

SHOULD USE 61-652

1шт.

20

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

45 degree swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degree flared

1шт.
