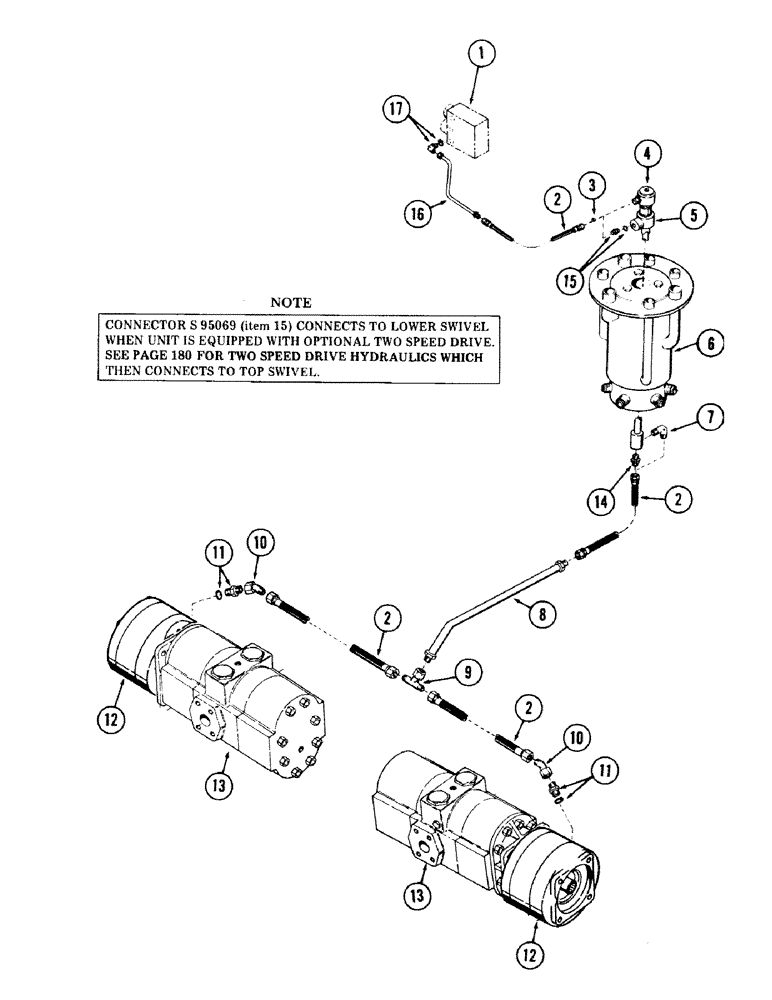

Запчасти Case 40 (182) - DRIVE BRAKE TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE, solenoid monoblock - (For breakdown, see Figure 224)

1шт.

2

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

2шт.

3

S89669

VALVE

RESTRICTOR, flow

1шт.

4

REF

INSTRUCTION

SWIVEL, service - (For breakdown, see figure 152)

1шт.

5

REF

INSTRUCTION

SWIVEL, inner - (Used with single speed drive) - (For breakdown, see Figure 148)

1шт.

REF

INSTRUCTION

SWIVEL, inner - (Used with two speed drive) - (For breakdown, see Figure 150)

1шт.

6

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 206)

1шт.

7

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90 degree - (3/8" tube) - 9/16" - 18 male x 1/8" NPT male - 37 degree flared- (Used with inner swivel use with two speed drive)

1шт.

8

S235193

TUBE, hydraulic 0.5" OD x 19.56, 1.81" L

1шт.

9

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 female - 37 degree flared

1шт.

10

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

45 degree swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degree flared

2шт.

11

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - (3/8" tube) - 7/16" - 20 male x 9/16" - 18 male - 37 degree flared

2шт.

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING

2шт.

12

REF

INSTRUCTION

BRAKE, track - (For breakdown, see Figure 66)

2шт.

13

REF

INSTRUCTION

MOTOR, track drive - (Used with single speed drive) - (Not illustrated) - (For breakdown, see Figure 216)

2шт.

REF

INSTRUCTION

MOTOR, track drive - (Used with two speed drive) - (Illustrated) - (For breakdown, see Figure 218)

2шт.

14

REF

INSTRUCTION

ADAPTER - (Used with inner swivel use with single speed drive) - (See ref 7 on Figure 148)

1шт.

15

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - (3/8" tube) - 7/16" - 20 male x 9/16" - 18 male - 37 degree flared - (See note on figure 148)

1шт.

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING

1шт.

16

S231454

TUBE, hydraulic 0.375" OD x 6.36, 6.58" L

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

S99421

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 23" long - (With 9/16" - 18 female pressed on couplings)

2шт.
