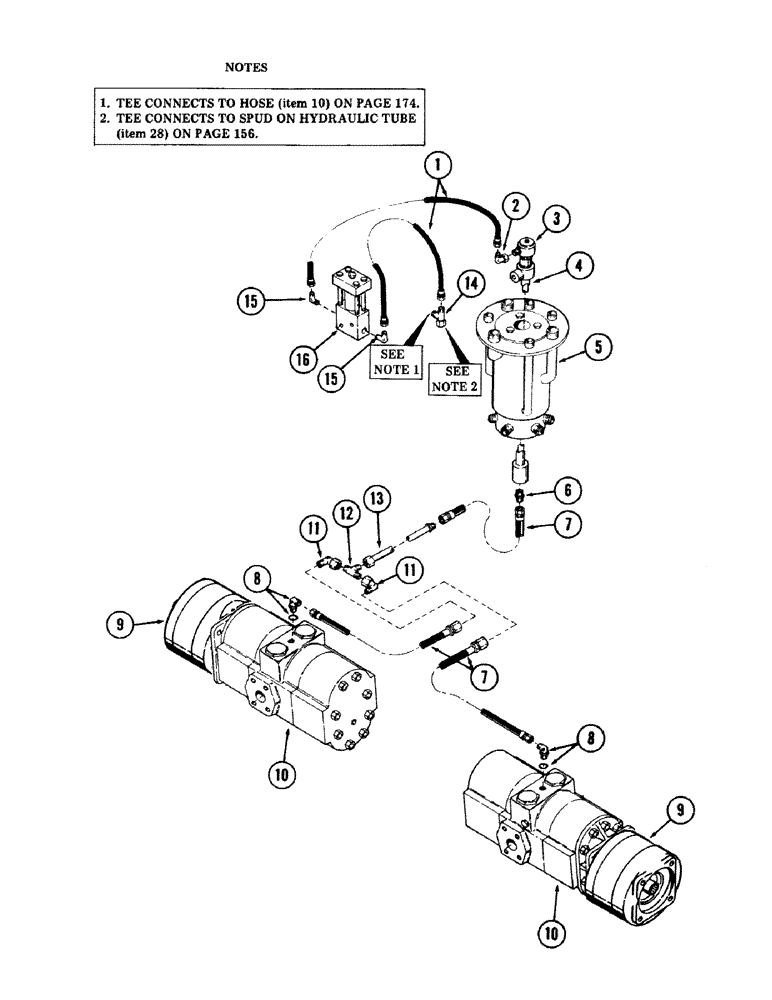

Запчасти Case 40 (180) - OPTIONAL TWO SPEED DRIVE TUBING (35) - HYDRAULIC SYSTEMS

1

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

2шт.

2

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degree swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degree flared

1шт.

3

REF

INSTRUCTION

SWIVEL, service - (For breakdown, see figure 152)

1шт.

4

REF

INSTRUCTION

SWIVEL, inner - (For breakdown, see figure 150)

1шт.

5

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 206)

1шт.

6

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degree flared

1шт.

7

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

3шт.

8

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree adjustable - (1/2" tube) - 3/4" - 16 male x 9/16" - 18 male

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

9

REF

INSTRUCTION

BRAKE, track - (For breakdown, see Figure 66)

2шт.

10

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see figure 218)

2шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.

12

218-594

TEE,3/4"-16, 37 Degree

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 male - 37 degree flared

1шт.

13

S235192

TUBE,0.5" OD x 12.68" L

hydraulic

1шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male - 37 degree flared

1шт.

15

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree - (3/8" tube) - 9/16" - 18 male x 3/8" NPT male - 37 degree flared

2шт.

16

REF

INSTRUCTION

VALVE, hi-low range solenoid - (For breakdown, see Figure 226)

1шт.
