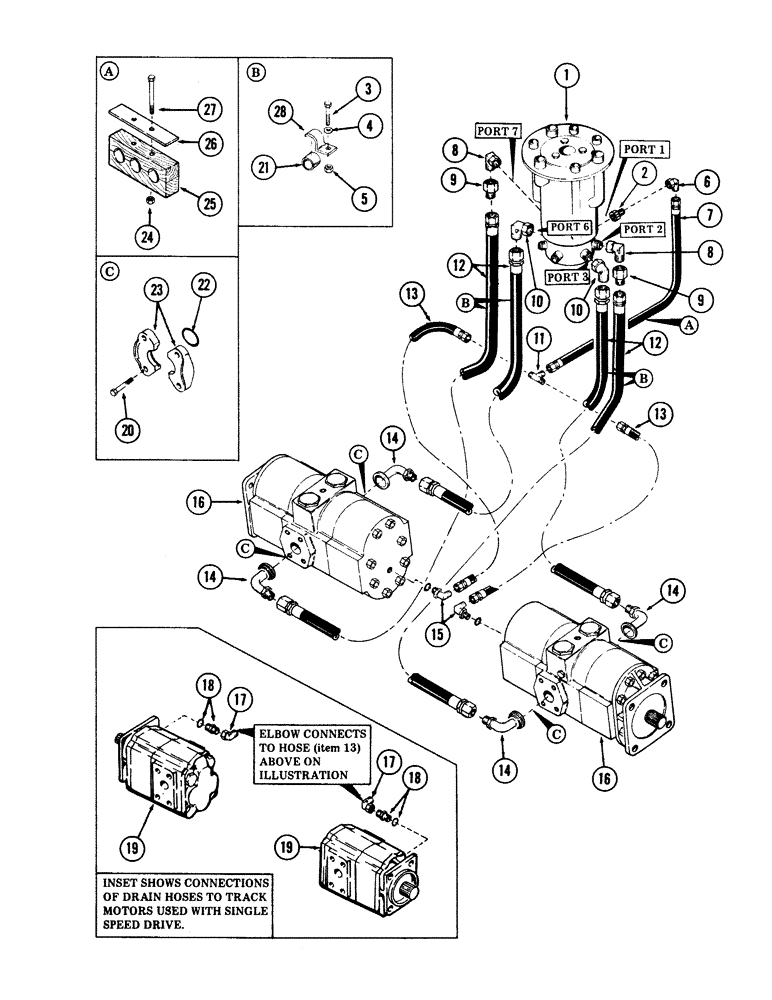

Запчасти Case 40 (178) - LOWER TRACK DRIVE MOTOR TUBING AND DRAIN (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

SWIVEL - 7-port hydraulic - (For breakdown, see Figure 206)

1шт.

2

218-724

REDUCER,37º, 1 5/16"-12, Fem x 9/16"-18 Male

BUSHING, reducer - 1-5/16" - 12 female x 9/16" - 18 male - 37 degree flared

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

4шт.

5

132-70

PIN

NUT, self locking - 1/2" NC

4шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degree swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degree flared

1шт.

7

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)

1шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

90 degree swivel - (3/4" tube) - 1-1/16" - 12 male x 1-1/16" - 12 female - 37 degree flared

2шт.

9

S235197

ADAPTER

- (3/4" tube) - 1-1/16" - 12 female x 2-5/16" - 16 male - 37 degree flared

2шт.

10

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

11

218-593

TEE,9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

12

S401534

HOSE ASSY.

HOSE, high pressure - 1" ID x 66" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

13

S227395

HOSE

high pressure - 3/8" ID x 21" long - (With 9/16" - 18 female pressed on couplings)

2шт.

14

S234440

ELBOW

TUBE, hydraulic

2шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared - 37 degree flared

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

16

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see figure 218)

2шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

90 degree swivel - (3/8" tube) - 9/16" - 18 female - 37 degree flared

2шт.

18

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared

2шт.

19

REF

INSTRUCTION

MOTOR, track drive - (For breakdown, see Figure 216)

2шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

16шт.

21

S86502

RING

compression

4шт.

22

S6589

O-RING

"O" RING - 1.859" ID x 2.137" OD

4шт.

23

A14157

FLANGE

CLAMP, half flange

8шт.

24

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

25

S235195

CLAMP, wood

1шт.

26

S235194

BAR

1шт.

27

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

28

S87573

CLAMP

4шт.
