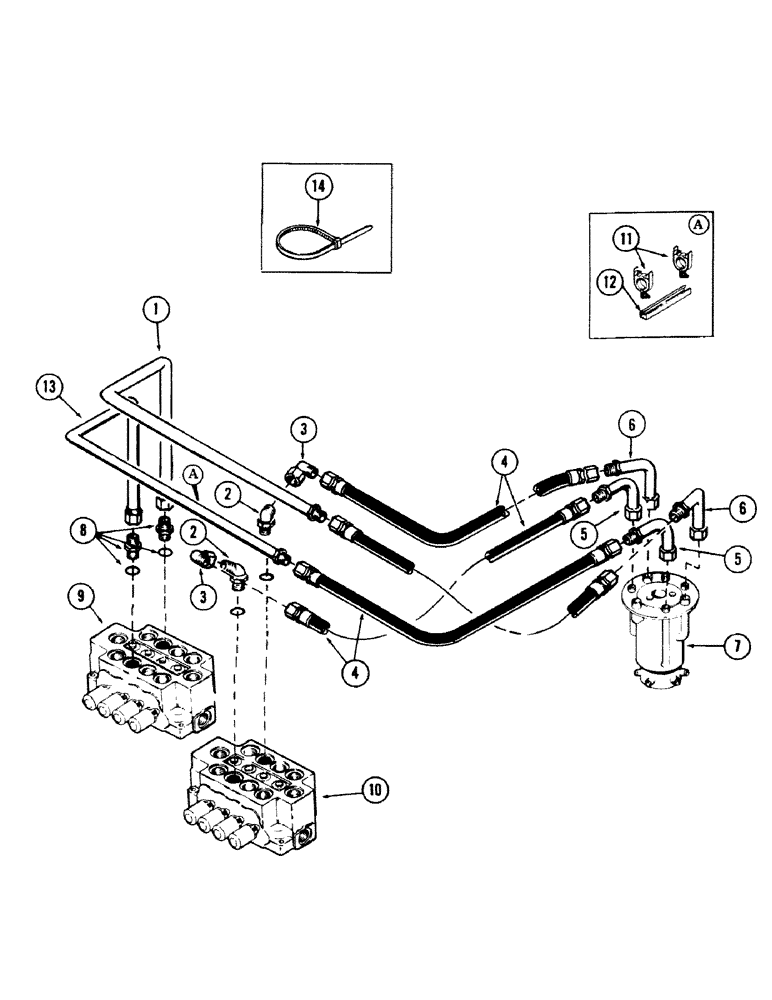

Запчасти Case 40 (176) - TRACK DRIVE MOTOR TUBING, (FROM MAIN VALVES TO SWIVEL) (35) - HYDRAULIC SYSTEMS

1

S513664

TUBE,1.25" OD

hydraulic

1шт.

2

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

4

S8628

HOSE

high pressure - 1" ID x 36" long - (With 5/16" - 12 female pressed on couplings)

4шт.

5

S237062

TUBE,1" OD x 6.06, 4.91" L

hydraulic

2шт.

6

S229157

TUBE,1" OD x 7.62, 8.75" L

hydraulic

2шт.

7

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 206)

1шт.

8

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

4шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (Outside) - (For breakdown, see Figure 236 or 238)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main hydraulic - (Inside) - (For breakdown, see Figure 234)

1шт.

11

S93266

CLAMP

2шт.

12

S98782

CHANNEL

clamp mounting

1шт.

13

S237060

TUBE,1.25" OD

hydraulic

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable - (Hoses to drain, Serial Range: hose-tank)

3шт.
