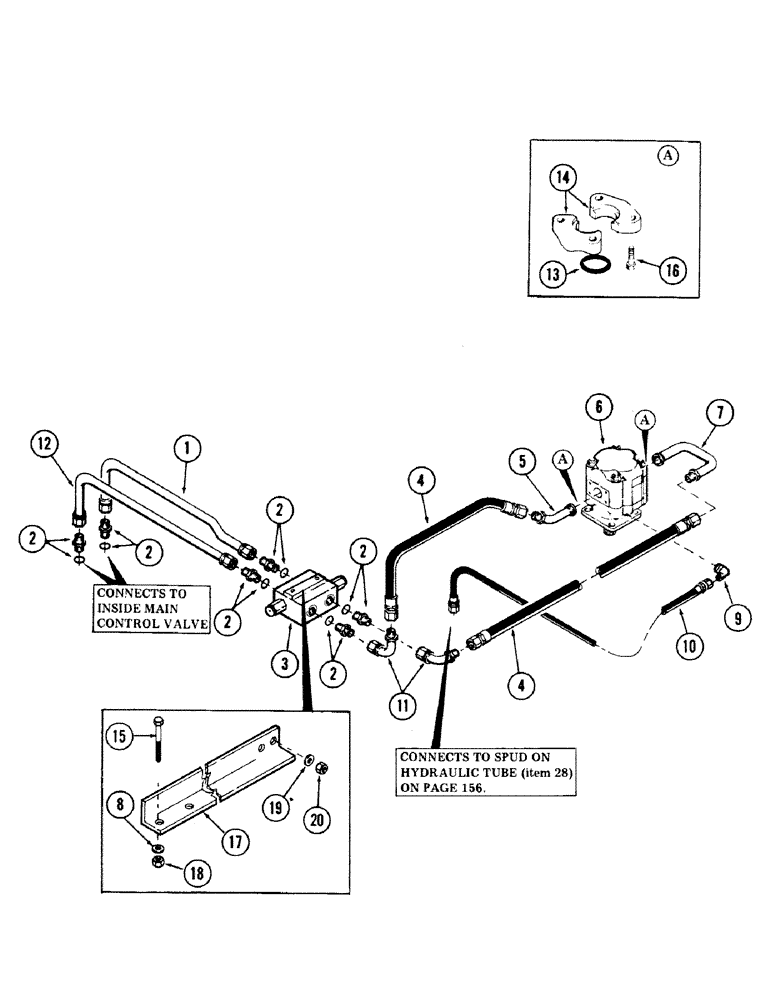

Запчасти Case 40 (174) - SWING MOTOR TUBING (35) - HYDRAULIC SYSTEMS

1

S234837

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" 12 male - 37 degree flared

6шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

6шт.

3

REF

INSTRUCTION

VALVE - crossover relief - (For breakdown, see Figure 230)

1шт.

4

S8628

HOSE

- high pressure, 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

5

S235919

ADAPTER

TUBE - hydraulic

1шт.

6

REF

INSTRUCTION

MOTOR - swing (For breakdown, see Figure 214)

1шт.

7

S234839

TUBE - hydraulic 1.25" OD x 5.06, 8.06" L

1шт.

8

195-521

WASHER,5/16", SAE

- flat, 13/32"

2шт.

9

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree - (3/8" tube) - 9/16" - 18 male - 1/4" PT male - 37 degree flared

1шт.

10

S227395

HOSE

high pressure - 3/8" ID x 21" long - (With 9/16" - 18 female pressed on couplings)

1шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90" swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

12

S234835

TUBE, hydraulic 1.25" OD x 27.41, 6.81" L

1шт.

13

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1.484" ID x 1.762" OD

2шт.

14

A12301

CLAMP,Half

- split

4шт.

15

113-167

BOLT,Hex, 5/16" - 18 x 4", Gr 5

(Mounts valve to angle) Hex, 5/16"-18 x 4", G5

2шт.

16

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- 7/16" x 2-3/4" NC hex (Grade 5)

8шт.

17

S513951

ANGLE

1шт.

18

131-462

NUT,5/16"-18

NUT - 5/16" NC

2шт.

19

S95569

WASHER

- flat, 1/2"

2шт.

20

131-70

NUT,1/2"-13, GB

NUT - lock, 1/2" NC

2шт.
