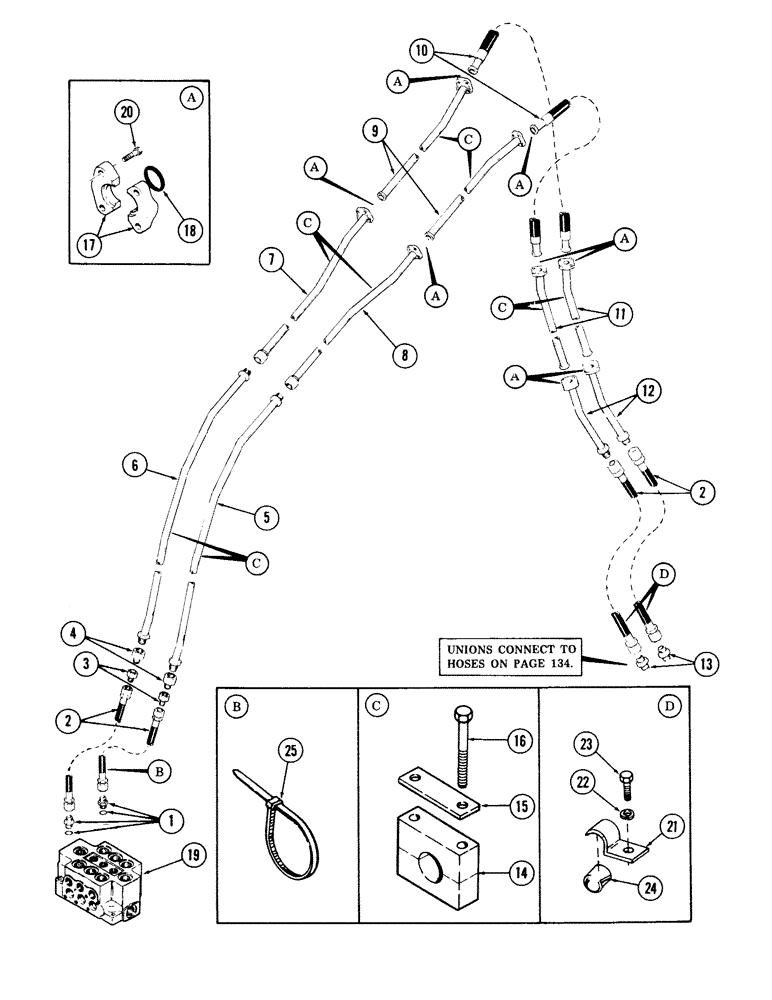

Запчасти Case 40 (172) - AUXILIARY TUBING, (USED ON UNITS WITH "Y" BOOM) (35) - HYDRAULIC SYSTEMS

1

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - 1/2" tube - 1-5/16" - 12 male x 3/4" - 16 male - 37 degree flared

2шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

2

S11241

HOSE

high pressure - 3/8" ID x 106" long - 3/4" - 16 female x 3/4" - 16 female ends

4шт.

3

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

- 1/2" tube - 7/8" - 14 female x 3/4" - 16 - 37 degree flared

2шт.

4

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

- 5/8" tube - 1-1/16" - 12 female x 7/8" - 14 male - 37 degree flared

2шт.

5

S613291

TUBE,1" OD

hydraulic

1шт.

6

S613292

LINE,1" OD

TUBE, hydraulic

1шт.

7

S613294

LINE,1" OD

TUBE, hydraulic

1шт.

8

S613293

TUBE,1" OD

hydraulic

1шт.

9

S236159

TUBE, hydraulic 1" OD

2шт.

10

S235670

HOSE

high pressure

2шт.

11

S235673

TUBE,1" OD

hydraulic

2шт.

12

S235669

TUBE,0.5" OD

hydraulic

2шт.

13

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 1/2" tube - 3/4" - 16 male - 37 degree flared x 3/4" - 16 male - 37 degree flared

2шт.

14

S112616

CLAMP

1шт.

15

S112618

PLATE

1шт.

16

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

17

A12306

FLANGE

split half

1шт.

18

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

VALVE - 4-spool main control (Outside) (See Figure 238)

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

21

S116280

CLAMP

1шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

23

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

24

S75792

RING

compression

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.
