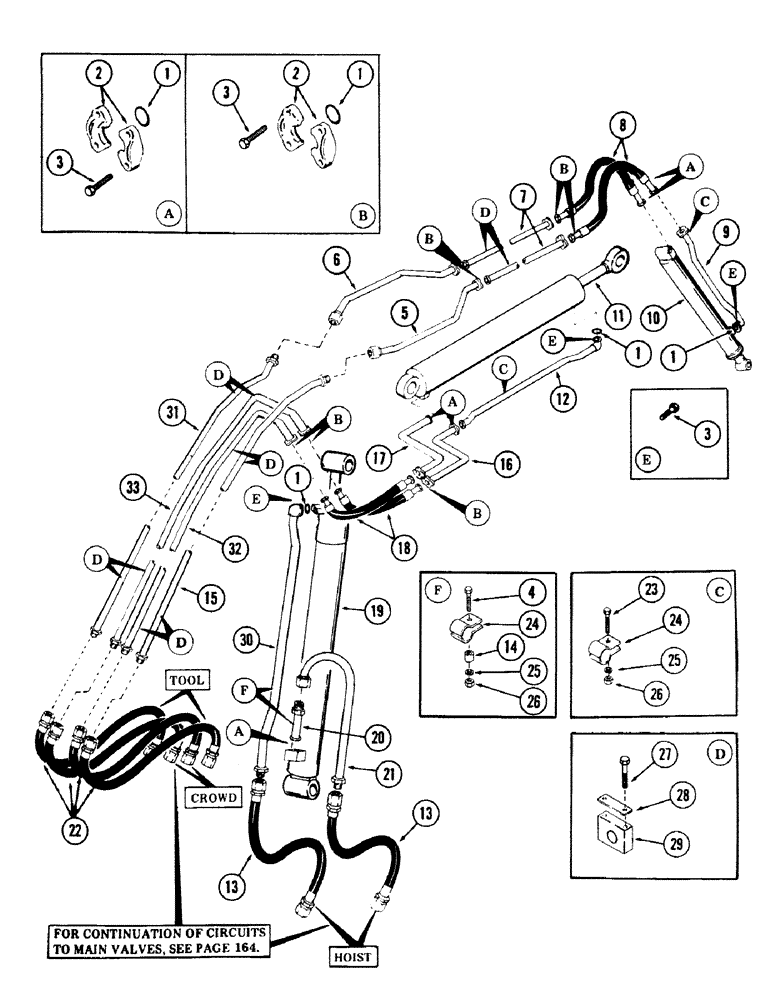

Запчасти Case 40 (170) - "Y" BOOM TUBING (35) - HYDRAULIC SYSTEMS

1

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

1шт.

2

A12301

CLAMP,Half

CLAMP - half flange

1шт.

3

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

1шт.

4

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

1шт.

5

S613289

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

6

S613290

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

7

S236160

LINE,1.25" OD x 32.66" L

TUBE - hydraulic

2шт.

8

S229987

HOSE ASSY.

HOSE - high pressure

2шт.

9

S235038

TUBE ASSY.,1.25" OD x 42.55, 0.92" L

TUBE - hydraulic

1шт.

10

REF

INSTRUCTION

CYLINDER - tool - (For breakdown, see Figure 198)

1шт.

11

REF

INSTRUCTION

CYLINDER - crowd - (For breakdown, see Figure 194)

1шт.

12

S238001

TUBE ASSY.,1.25" OD x 53.6, 10" L

TUBE - hydraulic

1шт.

13

S401536

HOSE

- high pressure - 1" ID x 30" long - (With 1-5/16" female pressed on couplings)

2шт.

14

S99904

SPACER

1шт.

15

S613287

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

16

S237058

LINE,1.25" OD x 7.8, 5.35" L

TUBE - hydraulic

1шт.

17

S236162

TUBE ASSY.,1.25" OD x 8.8, 8.05" L

TUBE - hydraulic

1шт.

18

S229986

HOSE ASSY.

HOSE - high pressure

2шт.

19

REF

INSTRUCTION

CYLINDER - hoist - (For breakdown, see Figure 196)

1шт.

20

S238004

LINE,1.25" OD x 7.09" L

TUBE - hydraulic

1шт.

OTHER TUBES USED(NOT A SUB) USE THE FOLLOWING S238586 & 218-5039, S514345 AND S615045.USED ON Y BOOM UNITS ONLY.

1шт.

21

S514049

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

OTHER TUBES USED(NOT A SUB) USE THE FOLLOWING S238586 & 218-5039, S514345 AND S615045.USED ON Y BOOM UNITS ONLY.

1шт.

22

S8628

HOSE

- high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

23

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

1шт.

24

S106606

CLAMP

1шт.

25

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

26

129-104

NUT,7/16"-14, G5

1шт.

27

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

28

S112618

PLATE

1шт.

29

S112617

CLAMP

1шт.

30

S614188

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

31

S613288

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

32

S513753

TUBE,1.25" OD

- hydraulic

1шт.

33

S513752

TUBE,1.25" OD

- hydraulic

1шт.

OTHER TUBES USED(NOT A SUB) USE THE FOLLOWING S238586 & 218-5039, S514345 AND S615045.USED ON Y BOOM UNITS ONLY.

1шт.
