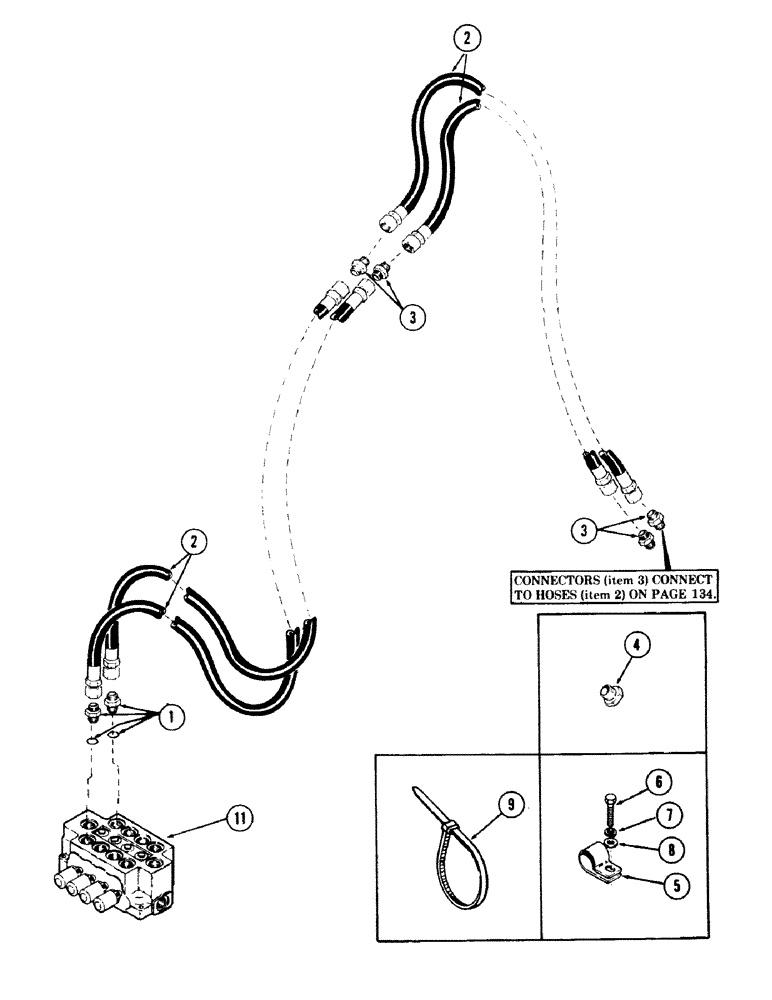

Запчасти Case 40 (168) - AUXLILIARY HOSES, (USED ON UNITS WITH "E" BOOM) (35) - HYDRAULIC SYSTEMS

1

S111648

CONNECTOR, ELEC

CONNECTOR

2шт.

2

S75758

HOSE

- high pressure - 3/8" ID x 246" long - 3/4" - 16 female x 3/4" - 16 female

4шт.

3

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 1/2" tube - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared

4шт.

4

218-775

PLUG,3/4"-16, 37 Degree

- 1/2" tube - 3/4"-16 male - 37 degree flared

2шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

16шт.

6

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

- 5/16" x 3-1/4" (Grade 5) - (Replaces bolt in boom clamp)

10шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

8

195-102

WASHER,1/4"

- flat 5/16"

6шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

14шт.

10

S235910

BLOCK

- tapped - (Welds to dipper) - (Not illustrated)

3шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control - (Outside) - (For breakdown, see Figure 238)

1шт.
