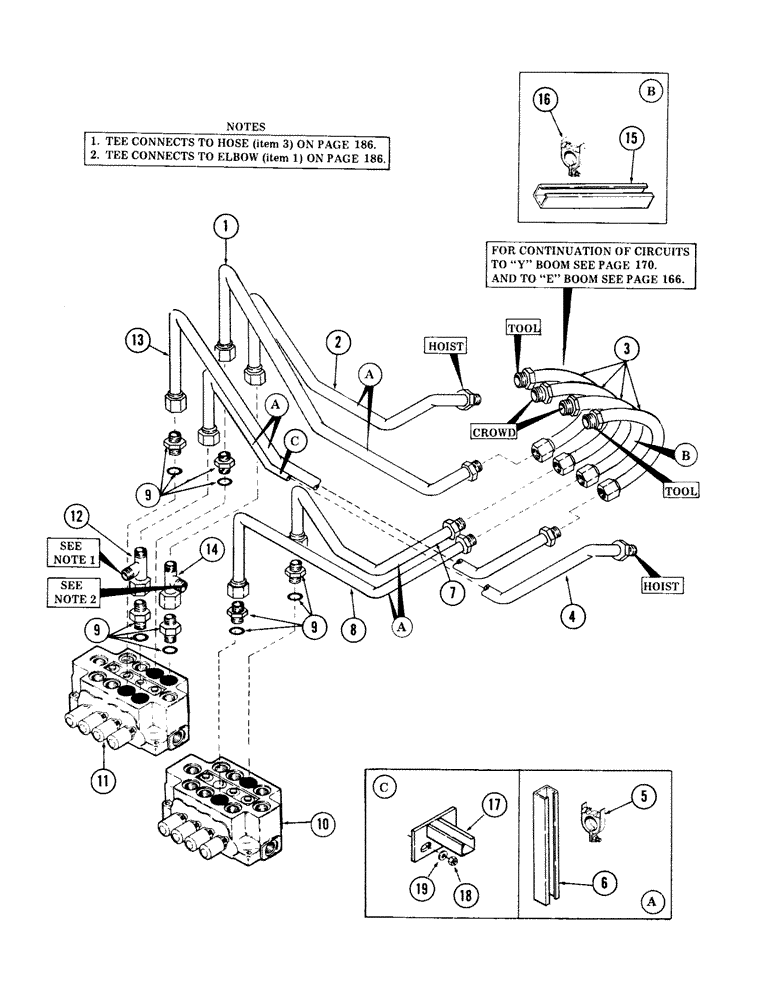

Запчасти Case 40 (164) - CROWD, HOIST AND TOOL TUBING, (FROM MAIN VALVES TO BOOM) (35) - HYDRAULIC SYSTEMS

1

S512392

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

2

S512427

TUBE ASSY.

TUBE, hydraulic

1шт.

3

S234334

TUBE ASSY.

TUBE, hydraulic

4шт.

4

S512394

TUBE ASSY.

TUBE, hydraulic

1шт.

5

S93266

CLAMP

tube

6шт.

6

S98963

CHANNEL

2шт.

7

S512419

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

8

S512391

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/'6" - 12 male x 1-5/16" - 12 male - 37 degree flared

6шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 234)

1шт.

11

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 236 or 238)

1шт.

12

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female x 2-5/16" - 12 male - 37 degree flared

1шт.

13

S512393

TUBE ASSY.,1.25" OD

TUBE, hydraulic

1шт.

14

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female x 1-5/16" - 12 male - 37 degree flared

1шт.

15

S98782

CHANNEL

1шт.

16

S93266

CLAMP

tube

4шт.

17

S234354

BRACKET

clamp mounting

2шт.

18

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

4шт.

19

S95569

WASHER

flat - 1/2"

4шт.
