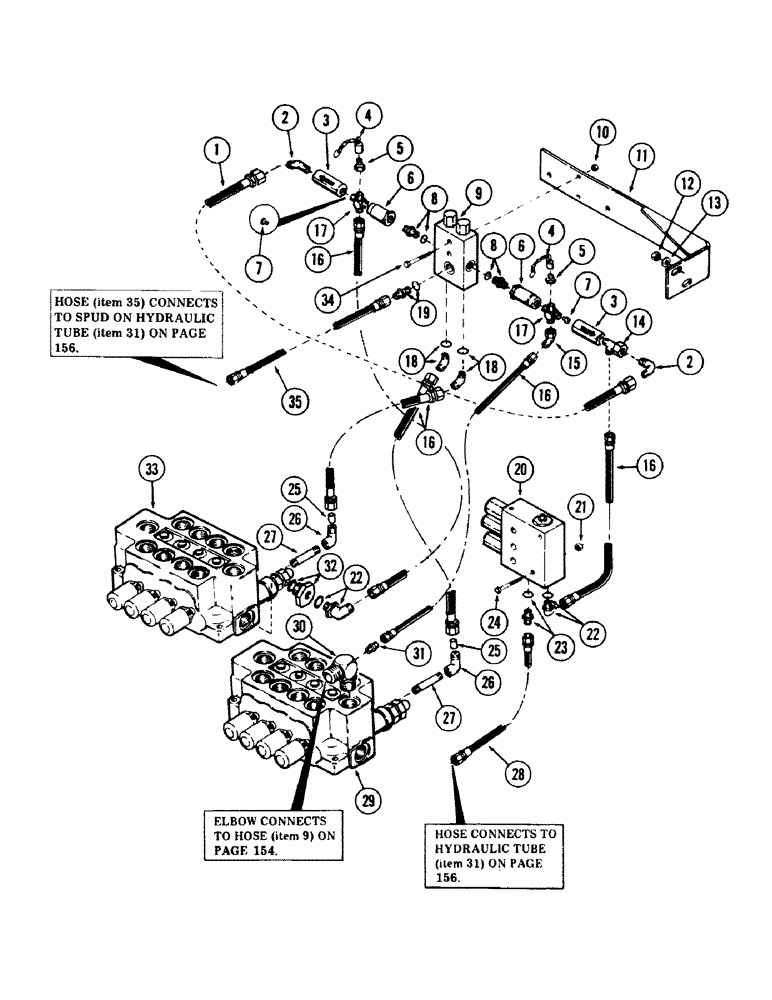

Запчасти Case 40 (160) - POWER SENSING TUBING (35) - HYDRAULIC SYSTEMS

1

S99421

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 23" long - (With 9/16" - 18 female pressed on couplings)

1шт.

2

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degrees - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degrees flared

2шт.

3

S110789

VALVE

check valve

2шт.

4

S206608

CAP

dust

2шт.

5

S206607

DISC

ONNECT, quick

2шт.

6

S98004

FILTER

2шт.

S18960

O-RING,-208, 90 Duro, .609" ID x .139" Thk

"O" RING

1шт.

7

S233837

NOZZLE CAP

VENT, orifice

2шт.

8

218-5440

FITTING

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

9

REF

INSTRUCTION

VALVE, power sensing relief - (For breakdown, see Figure 222)

1шт.

10

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

2шт.

11

S512938

BRACKET, valve mounting

1шт.

12

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

13

S95569

WASHER

flat - 1/2"

2шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male - 37 degree flared

1шт.

16

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

5шт.

17

S111366

CROSS

2шт.

18

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 5/8" tube - 3/4"-16 male x 7/8"-14 male - 37 degree flared

1шт.

20

REF

INSTRUCTION

VALVE, solenoid monoblock - (For breakdown, see Figure 224)

1шт.

21

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT, self locking - 5/16" NC

2шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

- 5/16" NC x 3-1/4" Gr 8

2шт.

25

S89669

VALVE

RESTRICTOR, flow

2шт.

26

218-525

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/8"-27, Fem NPTF

90 degree - (3/8" tube) - 9/16" - 18 male x 1/8" NPT female - 37 degree flared

2шт.

27

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - 1/8" NPT male

2шт.

28

S227396

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 50" long - (With 9/16" - 18 female pressed on couplings)

1шт.

29

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 234)

1шт.

30

REF

INSTRUCTION

ELBOW, 90 degree - (1" tube) 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared - (See item 6 on Figure 154)

1шт.

REF

INSTRUCTION

"O" RING - (See item 6 on Figure 154)

1шт.

31

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared

1шт.

32

S112222

PLUG

- 9/16" - 18 female x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O RING

1шт.

33

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 236 or 238)

1шт.

34

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- 1/4" NC x 2-1/4" Gr 5

2шт.

35

S8581

HOSE ASSY.

HOSE, high pressure - 1/2" ID x 48" long - (With 7/8" - 14 female pressed on couplings)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
