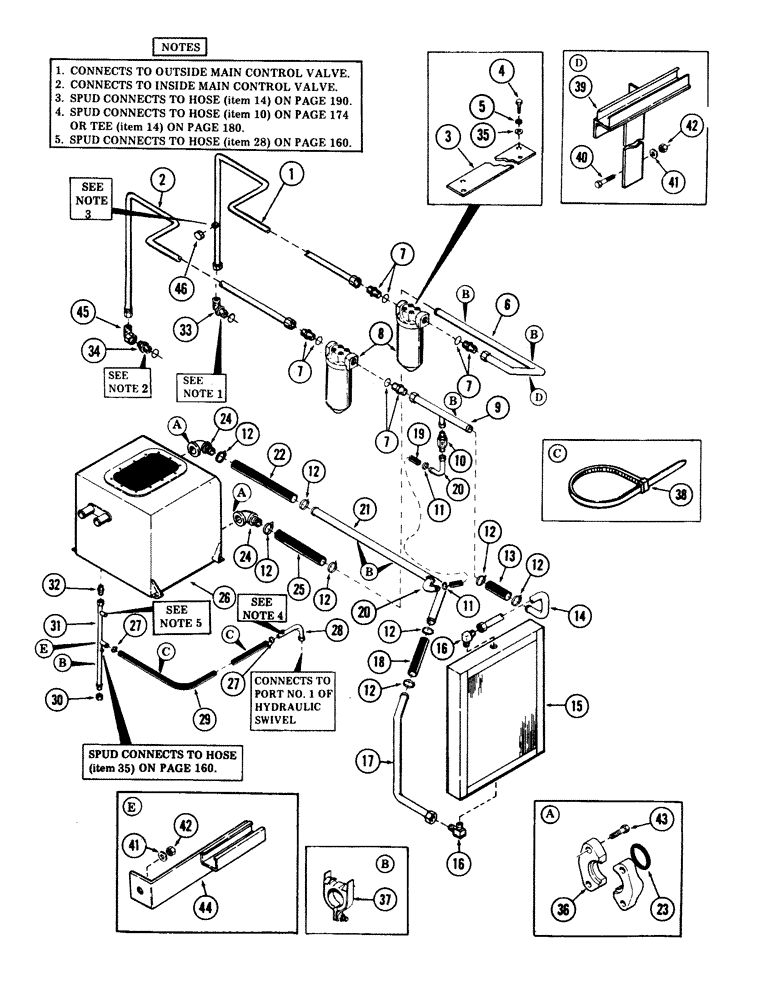

Запчасти Case 40 (156) - MAIN VALVES TO FILTERS TO RESERVOIR AND COOLER TUBING (35) - HYDRAULIC SYSTEMS

1

S616133

TUBE, hydraulic

1шт.

S616135

TUBE, hydraulic - (Used only when unit is equipped with both optional leveler and auxiliary tubing) 1.5" OD

1шт.

2

S515020

TUBE, hydraulic 1.5" OD

1шт.

3

S238226

PLATE

BRACKET, tie, Serial Range: (Filter-filter)

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

6

S236720

TUBE, hydraulic 1.5" OD x 33.56, 11.34" L

1шт.

7

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

CONNECTOR - (1-1/2" tube) - 1-7/8" - 12 male x 1-7/8 -12 male - 37 degree flared

4шт.

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

4шт.

8

REF

INSTRUCTION

FILTER, hydraulic oil - (For breakdown, see Figure 208)

2шт.

9

S234838

TUBE, hydraulic

1шт.

10

S105386

VALVE

check

1шт.

11

214-371

CLAMP,1.56"-1.81", T-Bolt

hose

2шт.

12

S85429

CLAMP

hose

8шт.

ANOTHER CLAMP USED (NOT A SUB) USE 214-351

1шт.

13

REF

INSTRUCTION

HOSE, low pressure - 13" long - cut from S118407

1шт.

14

S229762

TUBE, hydraulic 1.5" OD x 19.15, 5.6" L

1шт.

15

REF

INSTRUCTION

COOLER, oil - (See ref 24 on Figure 78)

1шт.

16

218-1069

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

- 90 degrees - (1-1/4" tube) - 1-5/8" - 12 male x 1" NPT male - 37 degree flared

2шт.

17

S234836

TUBE, hydraulic 1.5" OD

1шт.

18

REF

INSTRUCTION

HOSE, low pressure - 13" long - cut from S118407

1шт.

19

REF

INSTRUCTION

HOSE, low pressure - 9" long - cut from S119465

1шт.

20

S215412

TUBE,1.25" OD x 3" L

hydraulic

2шт.

21

S512420

LINE

TUBE, hydraulic

1шт.

22

REF

INSTRUCTION

HOSE, low pressure - 16" long - cut from S118407

1шт.

23

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

-1.859" ID x 2.137" OD

2шт.

24

NLS

NO LONGER SERVICED

90 degrees

2шт.

25

REF

INSTRUCTION

HOSE, low pressure - 8" long - cut from S118407

1шт.

26

REF

INSTRUCTION

TANK, hydraulic, oil - (For breakdown, see Figure 204)

1шт.

27

214-378

CLAMP,1.40"-1.56", T-Bolt

hose

2шт.

28

S229693

TUBE,1" OD x 3, 3.75" L

hydraulic

1шт.

29

REF

INSTRUCTION

HOSE, low pressure - 63" long - cut from S118383

1шт.

30

218-760

CAP,37 Degree, 1 7/8"-12

- 1-1/2" tube) - 1-7/8" - 12 female - 37 degree flared

1шт.

31

S238575

LINE

TUBE, hydraulic

1шт.

32

218-450

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-1/2" - 11-1/2 Male NPTF

ADAPTER - 1-1/2" tube - 1-7/8" - 12 male x 1-1/2" NPT male - 37 degree flared

1шт.

33

218-5276

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 5/8"-12, O-Ring

90 degree adjustable - (1-1/2" tube) - 1-7/8" - 12 male x 1-5/8" - 12 male - 37 degrees flared

1шт.

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

1.25" ID x 180.00", SAE 100R3

1шт.

S118407

HOSE,1.50" ID x 60.00"

1.50" ID x 60.00"

1шт.

34

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - (1-1/2" tube) - 1-5/8 - 12 male x 1-7/8" - 12 male - 37 degrees flared

3шт.

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

3шт.

35

195-103

WASHER,5/16"

- flat, 3/8"

8шт.

36

A14157

FLANGE

CLAMP, half flange

4шт.

37

S98324

CLAMP

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.

39

S234786

BRACKET

filter support

2шт.

40

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

41

S95569

WASHER

flat - 1/2"

5шт.

42

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

5шт.

43

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2" NC x 1-1/4" Gr 5

8шт.

44

S235039

BRACKET

clamp mounting

1шт.

45

218-5236

ELBOW,90 Degree, 1 7/8"-12, 37 Degree x 1 7/8"-12, 37 Degree Fem Sw

90 degrees swivel - (1/2" tube) - 1-7/8" - 12 male x 1-7/8" - 12 female - 37" flared

1шт.

46

218-758

CAP,37 Degree, 1 5/16"-12

- (1" tube) - 1-5/16" - 12 female - 37 degrees flared - (Used only when unit is not equipped with optional leveler)

1шт.
