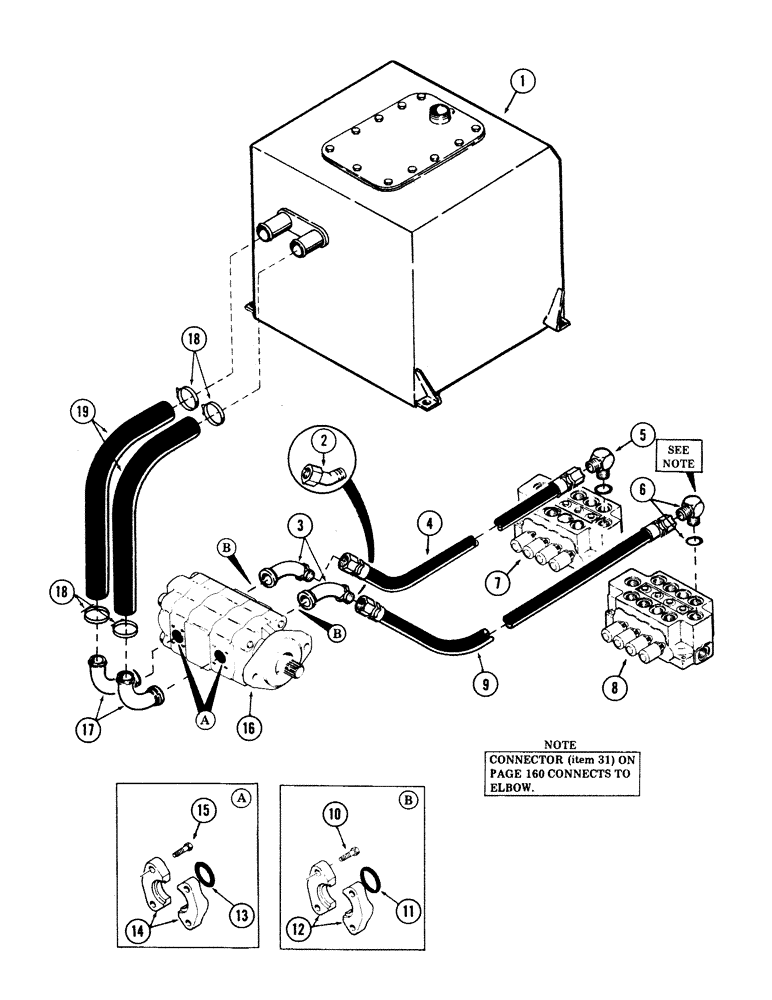

Запчасти Case 40 (154) - TANK TO PUMP TO VALVE TUBING (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

TANK, hydraulic oil - (For breakdown, see Figure 204)

1шт.

2

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16 - 12 female - 37 degrees flared - (Used with Case engine)

1шт.

3

S235919

ADAPTER

45 degrees - (Used with Case engine)

2шт.

S26936

TUBE

ADAPTER, 45 degrees - (Used with Detroit Diesel engine)

2шт.

4

S235936

HOSE

high pressure - 1" ID x 49" long - (With 1-5/16" - 16 female pressed on couplings)

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

6

S113093

ELBOW

90 degrees - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING

1шт.

7

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 236 or 238)

1шт.

8

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 234)

1шт.

9

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

1шт.

10

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

11

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - 1.484" ID x 1.762" OD

2шт.

12

A12301

CLAMP,Half

CLAMP, half flange

4шт.

13

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - 2.734" ID x 3.012" OD

2шт.

14

L14386

CLAMP

half flange - (Used with Case engine)

2шт.

A12306

FLANGE

CLAMP, half flange - (Used with Detroit Diesel engine)

2шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

16

REF

INSTRUCTION

PUMP, main hydraulic - (Used with Case engine) - (For breakdown, see Figure 210)

1шт.

REF

INSTRUCTION

PUMP, main hydraulic - (Used with Detroit Diesel engine) - (For breakdown, see Figure 212)

1шт.

17

S238509

TUBE,2" OD x 4.81, 8" L

hydraulic

2шт.

18

214-353

CLAMP,#46, 2.62"-2.31", T-Bolt

4шт.

19

REF

INSTRUCTION

HOSE, low pressure - 34" long - (Used with Case engine) - Cut from S118379

1шт.

REF

INSTRUCTION

HOSE, low pressure - 40" long - (Used with Detroit Diesel engine) - cut from S118379

1шт.

S118379

HOSE,2.00" ID x 60.00", SAE 100R4

2.00" ID x 60.00" Bulk, SAE 100R4

1шт.
