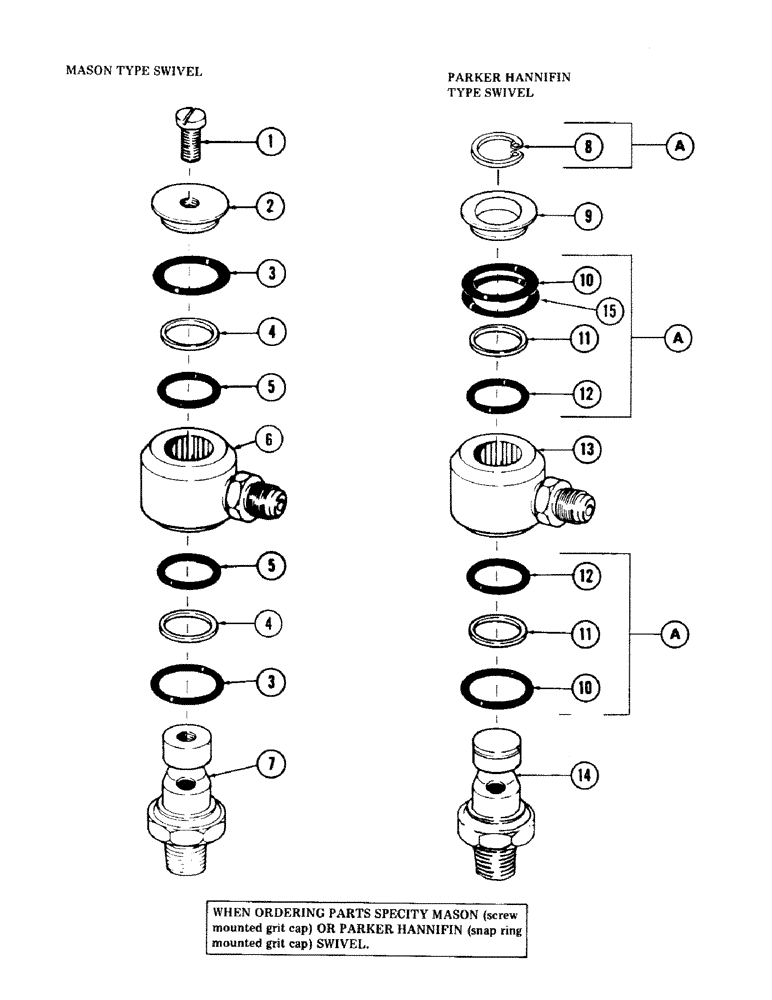

Запчасти Case 40 (152) - INNER SWIVEL, (USED WITH TRACK BRAKE AND HI-LOW RANGE SHIFT) (35) - HYDRAULIC SYSTEMS

S209351

FITTING

SWIVEL, inner - (Mason), Includes: Ref. 1 - 7

1шт.

1

177-95

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

machine - No. 10-32 NC x 3/8"

1шт.

2

S7989

CAP

grit

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - .737" ID x .937" OD

2шт.

4

S80212

WASHER

RING, backup

2шт.

5

S6478

SEAL

"O" RING - .612" ID x .812" OD

2шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

7

NSS

NOT SOLD SEPARAT

STEM

1шт.

S209351

FITTING

SWIVEL, inner - (Parker Hannifin), Includes: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

RING, snap

1шт.

Part of service kit, P/N S95177

1шт.

9

NSS

NOT SOLD SEPARAT

CAP, grit

1шт.

10

NSS

NOT SOLD SEPARAT

"O" RING

2шт.

Part of service kit, P/N S95177

1шт.

11

NSS

NOT SOLD SEPARAT

RING, back up

2шт.

Part of service kit, P/N S95177

1шт.

12

NSS

NOT SOLD SEPARAT

"O" RING

2шт.

Part of service kit, P/N S95177

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

STEM

1шт.

15

NSS

NOT SOLD SEPARAT

"O" RING

1шт.

Part of service kit, P/N S95177

1шт.

S95177

KIT

service - (Consists of items 8, 10 thru 12 and 15)

1шт.
