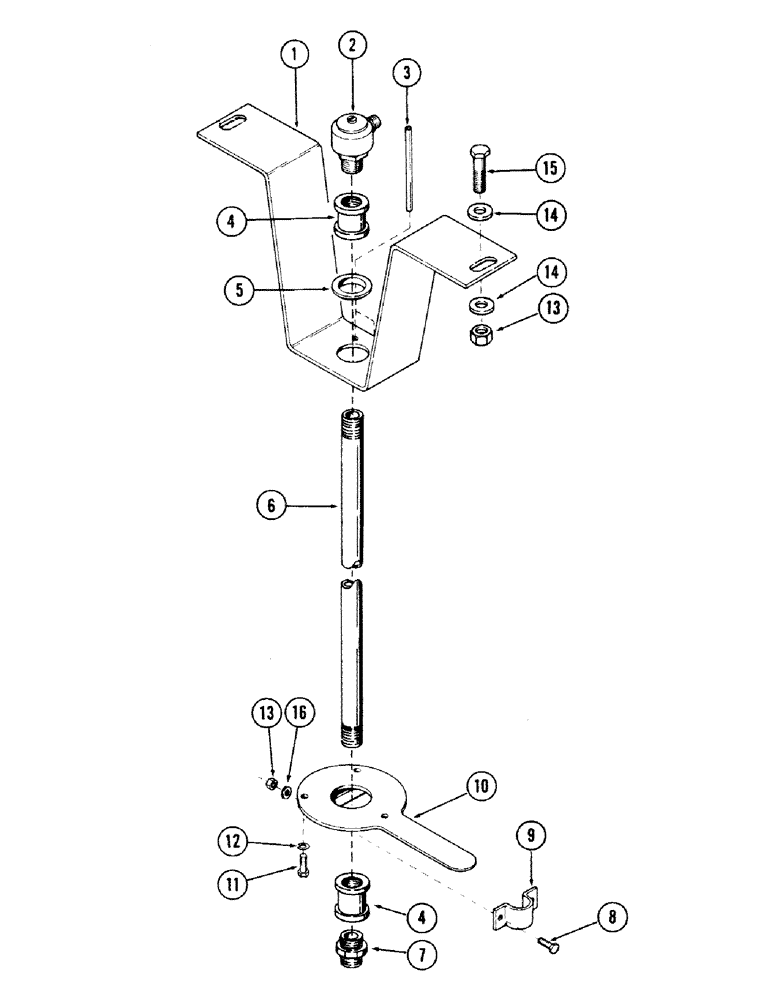

Запчасти Case 40 (148) - INNER SWIVEL, (USED WITH TRACK BRAKE AND SINGLE SPEED DRIVE) (35) - HYDRAULIC SYSTEMS

NSS

NOT SOLD SEPARAT

SWIVEL ASSEMBLY, inner, order components below, Includes: Ref. 1 - 7

1шт.

1

S229692

PLATE

guide

1шт.

2

REF

INSTRUCTION

SWIVEL - (For breakdown, see Figure 152)

1шт.

3

138-169

LOCK PIN,5/16" x 4", Slotted

Pin, 5/16" x 4", Slotted

2шт.

4

S115683

COUPLING

- 1/4" NPT female

2шт.

5

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING, nylon

1шт.

6

221-719

PIPE,Nipple, 1/4" NPT x 24 1/2"

NIPPLE, pipe - 1/4" NPT x 24-1/4" long

1шт.

7

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

S55980

CLAMP

1шт.

10

S237399

LARGE PLATE

PLATE, lower swivel mounting

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT, self locking - 5/16" NC

4шт.

14

195-102

WASHER,1/4"

flat - 5/16"

4шт.

15

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

16

195-102

WASHER,1/4"

flat - 5/16"

2шт.
