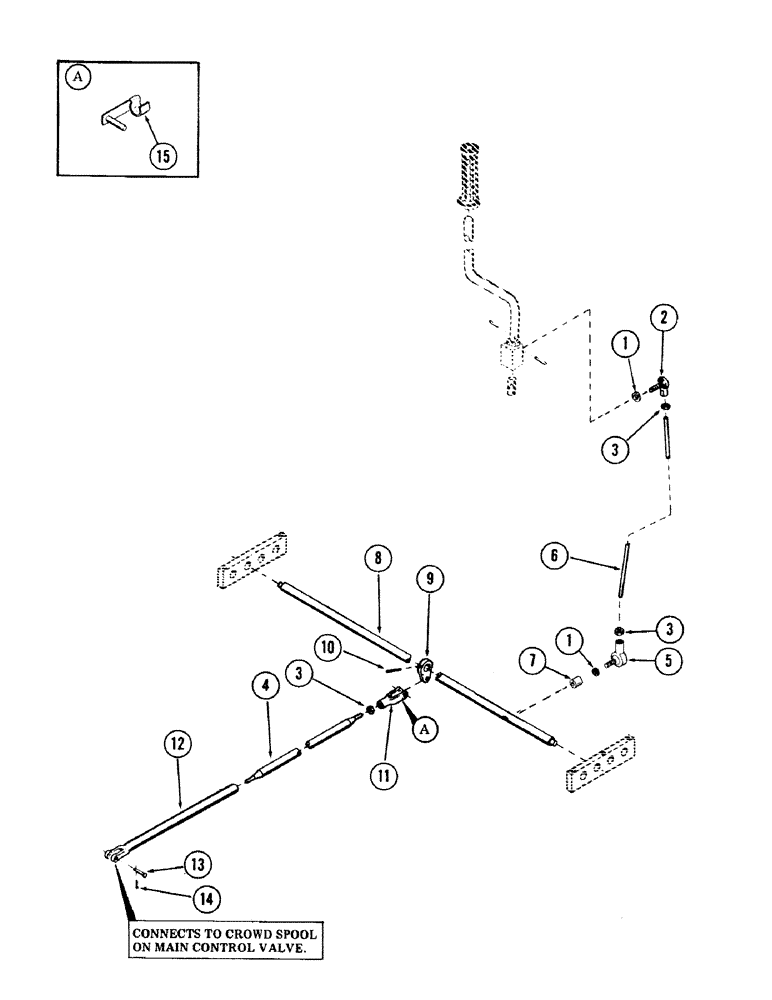

Запчасти Case 40 (146) - CROWD CONTROL ATTACHING PARTS (33) - BRAKES & CONTROLS

1

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

S236680

BALL JOINT

BALLJOINT

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

4шт.

4

S229507

ROD

connecting

1шт.

5

S116900

BALL JOINT

BALLJOINT

1шт.

6

S99329

STUD

1шт.

7

D55769

SPACER

SHIM

1шт.

8

S514829

SHAFT

1шт.

9

S238822

LEVER

1шт.

10

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

12

S238824

ROD, connecting

1шт.

13

S10767

PIN

clevis

1шт.

14

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

15

A147652

PIN

clevis - spring

1шт.
