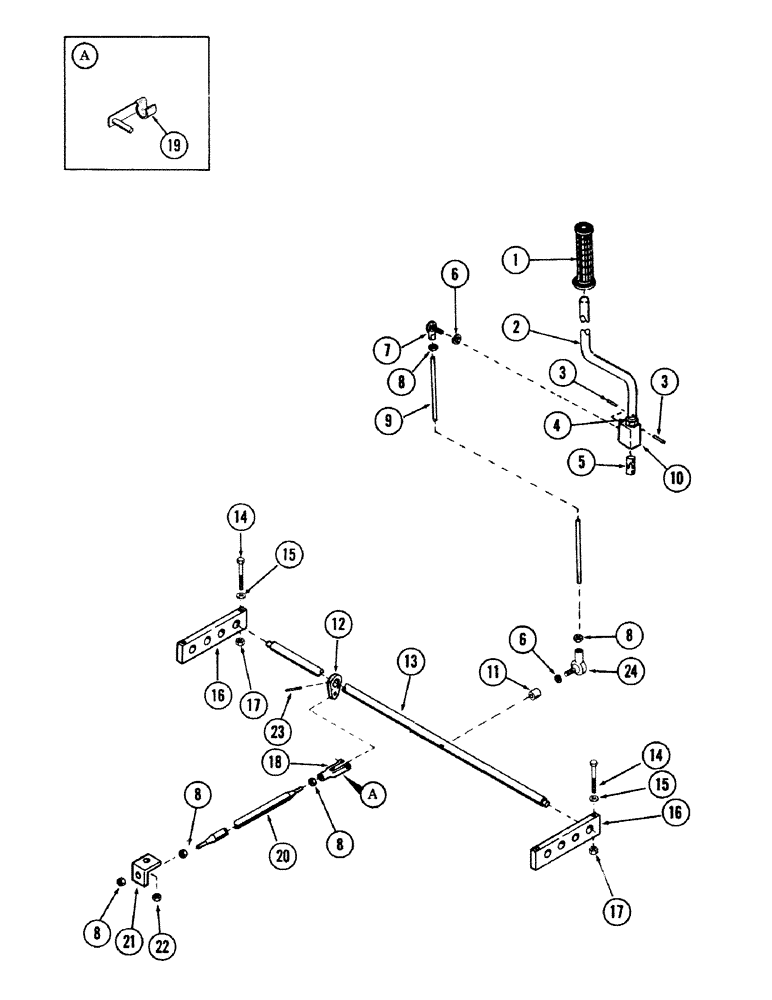

Запчасти Case 40 (144) - LEVELER CONTROL HANDLE AND ATTACHING PARTS (33) - BRAKES & CONTROLS

1

S109220

GRIP

handle

1шт.

ANOTHER GRIP USED (NOT A SUB) USE S119987 AND 353-406

1шт.

2

S514719

HANDLE

leveler control

1шт.

3

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

jam - 1/2" NC

1шт.

5

S238874

SWIVEL CONNECTION

JOINT, universal

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

S236680

BALL JOINT

BALLJOINT

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

5шт.

9

S99329

STUD

1шт.

10

S514718

BLOCK

1шт.

11

D55769

SPACER

SHIM

1шт.

12

S238822

LEVER

2шт.

13

S514830

SHAFT

1шт.

14

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

15

195-525

WASHER,3/8", SAE

flat - 7/16"

4шт.

16

S512159

SUPPORT

BAR, bearing support

2шт.

17

131-52

NUT,3/8"-16, GC

NUT - 3/8" NC

4шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

19

A147652

PIN

clevis - spring

1шт.

20

S222941

ROD

connecting

1шт.

21

S237631

ANGLE

1шт.

22

131-70

NUT,1/2"-13, GB

NUT

1шт.

23

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

24

S116900

BALL JOINT

BALLJOINT

1шт.
