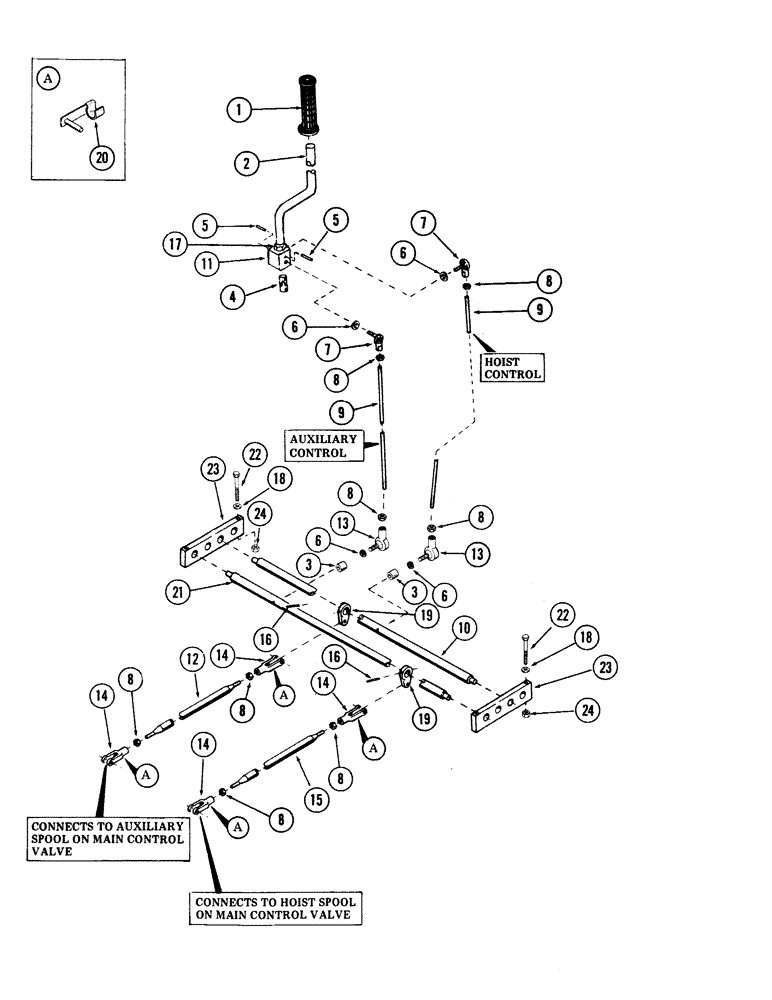

Запчасти Case 40 (142) - CONTROL HANDLE AND ATTACHING PARTS FOR: HOIST AND UTILITY CONTROL (33) - BRAKES & CONTROLS

1

S109220

GRIP

handle

1шт.

ANOTHER GRIP USED (NOT A SUB) USE S119987 AND 353-406

1шт.

2

S514719

HANDLE

hoist and utility control

1шт.

3

D55769

SPACER

SHIM

2шт.

4

S238874

SWIVEL CONNECTION

JOINT, universal

1шт.

5

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

S236680

BALL JOINT

BALLJOINT

2шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

8шт.

9

S99329

STUD

2шт.

10

S514831

SHAFT

1шт.

11

S514718

BLOCK

1шт.

12

S229509

ROD

connecting

1шт.

13

S116900

BALL JOINT

BALLJOINT

2шт.

14

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

4шт.

15

S233229

ROD

connecting

1шт.

16

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

17

425-1410

JAM NUT,Jam, 5/8"-11, G5

1/2" NC

5шт.

18

195-104

WASHER,3/8"

flat - 3/8"

4шт.

19

S238822

LEVER

2шт.

20

A147652

PIN

clevis - spring

4шт.

21

S514832

SHAFT

1шт.

22

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

23

S512159

SUPPORT

BAR, bearing support

2шт.

24

131-52

NUT,3/8"-16, GC

NUT, 3/8" NC

4шт.
