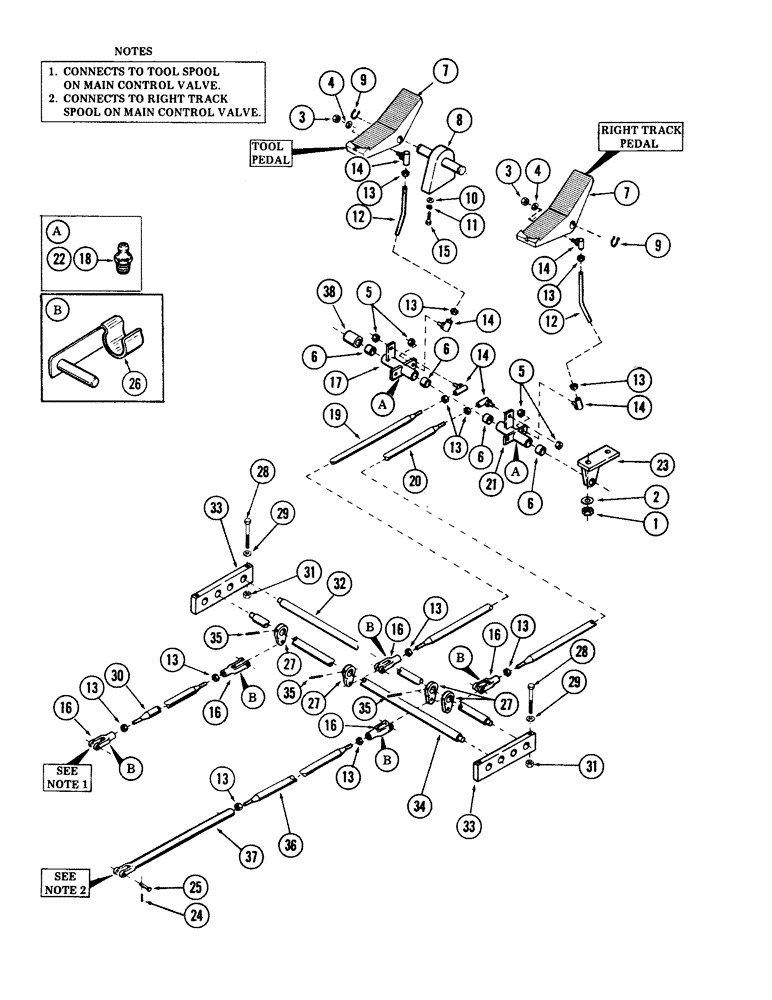

Запчасти Case 40 (140) - PEDALS AND ATTACHING PARTS FOR: RIGHT TRACK AND TOOL CONTROL (33) - BRAKES & CONTROLS

1

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

2шт.

2

95-8

WASHER,1/2"

flat 1/2"

2шт.

3

131-493

NUT

self locking

2шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, lock - 1/2"

2шт.

5

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" - 24 NC

4шт.

6

A30586

NEEDLE BEARING

BEARING, needle

4шт.

7

S615523

PEDAL

2шт.

8

S239280

BRACKET

1шт.

9

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINING RING

2шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

flat - 1/2"

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

S239128

STUD

ROD, connecting

2шт.

ANOTHER ROD USED (NOT A SUB)USE S48765

1шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

12шт.

14

S215594

BALL

JOINT

6шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

5шт.

17

S229402

ARM ASSY.

BELLCRANK, Includes: Ref. 18

1шт.

ANOTHER BELLCRANK USED(NOT A SUB) USE S240331

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19

S220636

EXCHANGE CONROD

ROD, connecting

1шт.

20

S229413

ROD

connecting

1шт.

21

S229403

ARM ASSY.

BELLCRANK, Includes: Ref. 22

1шт.

ANOTHER BELLCRANK USED (NOT A SUB) USE S240332

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

23

S237782

BRACKET, bellcrank support

1шт.

24

132-69

COTTER PIN,5/32" x 1"

PIN, cotter - 5/32" x 3/4" long

1шт.

25

S10767

PIN

clevis

1шт.

26

A147652

PIN

clevis - spring

5шт.

27

S238822

LEVER

4шт.

28

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" NC x 3-1/4" Gr 5

4шт.

29

195-525

WASHER,3/8", SAE

flat - 7/16"

4шт.

30

S229411

ROD

connecting

1шт.

31

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

32

S229918

SHAFT

1шт.

33

S514438

BAR

bearing support

2шт.

34

S237781

SHAFT

1шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

36

S229408

ROD

connecting

1шт.

37

S238834

ROD

connecting

1шт.

38

S110843

TUBE

SPACER

1шт.
