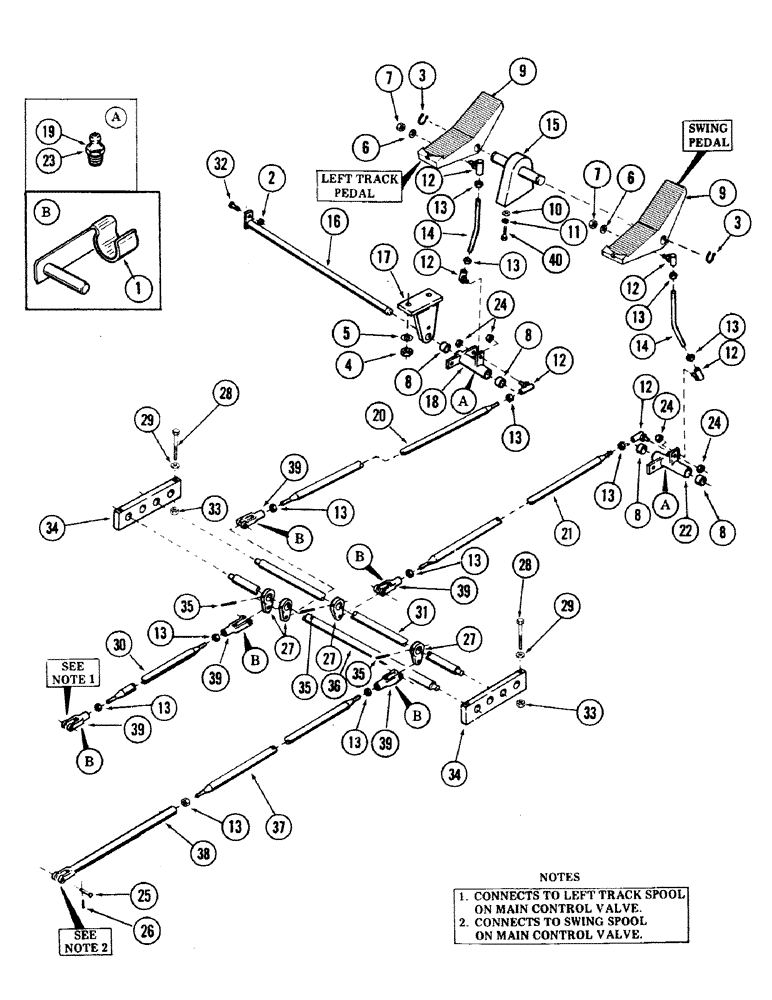

Запчасти Case 40 (138) - PEDALS AND ATTACHING PARTS FOR: LEFT TRACK AND SWING CONTROL (33) - BRAKES & CONTROLS

1

A147652

PIN

clevis - spring

5шт.

2

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

3

D95056

RING, retaining

2шт.

4

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

2шт.

5

95-8

WASHER,1/2"

flat 1/2"

2шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

7

131-493

NUT

self locking - 3/8" NC

2шт.

8

A30586

NEEDLE BEARING

BEARING, needle

4шт.

9

S615523

PEDAL

2шт.

10

196-20

WASHER,41/64" x 1.047" x .134", HDN

flat - 1/2"

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

S215594

BALL

JOINT

6шт.

13

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

12шт.

14

S239128

STUD

2шт.

15

S239280

BRACKET

1шт.

16

S229383

PIN ASSY.

SHAFT

1шт.

17

S235782

BRACKET

bellcrank

1шт.

ANOTHER BRACKET USED (NOT A SUB) USE S240334

1шт.

18

S229400

BELLCRANK, Includes: Ref. 19

1шт.

ANOTHER BELLCRANK USED(NOT A SUB) USE S240329

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

S229408

ROD

connecting

1шт.

21

S229411

ROD

connecting

1шт.

22

S229401

BELLCRANK, Includes: Ref. 23

1шт.

ANOTHER BELLCRANK USED (NOT A SUB) USE S240332

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

24

231-2446

NUT,3/8"-24, GB

NUT, self locking

4шт.

25

S10767

PIN

clevis

1шт.

26

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

27

S238822

LEVER

4шт.

28

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" NC x 3-1/4" Gr 5

4шт.

29

195-525

WASHER,3/8", SAE

flat - 3/8"

4шт.

30

S229413

ROD

connecting

1шт.

31

S229915

SHAFT

1шт.

32

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

33

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

34

S512159

SUPPORT

BAR, bearing support

2шт.

35

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

4шт.

36

S229916

SHAFT

1шт.

37

S219278

ROD

connecting

1шт.

38

S238834

ROD

connecting

1шт.

39

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

5шт.

40

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

ANOTHER STUD USED(NOT A SUB) S48765

1шт.
