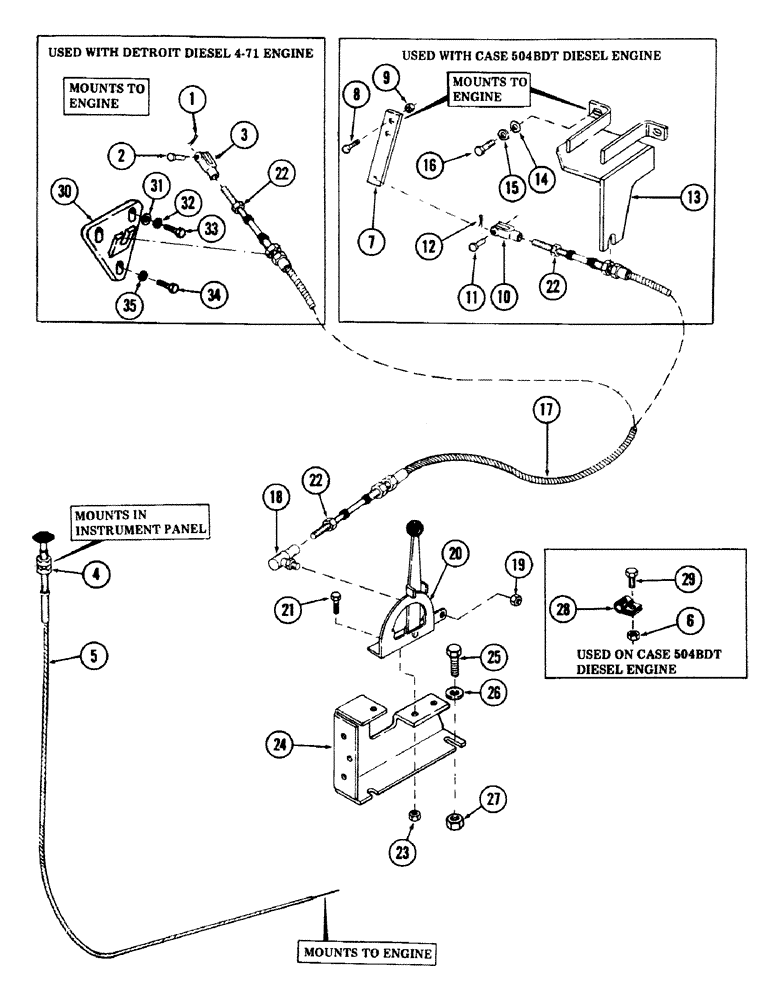

Запчасти Case 40 (082) - THROTTLE AND SHUT-OFF CONTROL CABLES (10) - ENGINE

1

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

S10736

PIN

- clevis, 5/16" x .734" grip length

1шт.

3

S82381

YOKE

1шт.

4

195-525

WASHER,3/8", SAE

- flat, 7/16"

2шт.

5

S231430

CABLE

- engine shut-off control

1шт.

6

86625061

NUT,1/4"-20, GB

NUT - self locking, 1/4" NC

1шт.

7

S92444

BAR

LEVER - throttle control

1шт.

8

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" gr 5

2шт.

9

86625061

NUT,1/4"-20, GB

NUT - self locking, 1/4" NC

2шт.

10

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

11

S10714

CLEVIS PIN

PIN - clevis, 1/4" x .648" grip length

1шт.

12

132-324

COTTER PIN,7/64" x 3/4"

Pin, Split (Cotter), 7/64" x 3/4"

1шт.

13

S505829

BRACKET

- cable support

1шт.

14

195-525

WASHER,3/8", SAE

- flat, 7/16"

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

S238507

CABLE

- throttle control

1шт.

18

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball

1шт.

19

131-498

LOCK NUT,1/4"-28, GB

NUT - self locking, 1/4" NF

1шт.

20

S514567

LEVER

- throttle

1шт.

21

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

23

86625061

NUT,1/4"-20, GB

NUT - self locking, 1/4" NC

2шт.

24

S514582

BRACKET

- throttle lever mounting

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- 3/8" NC x 3/4" Gr 5

3шт.

26

195-104

WASHER,3/8"

- flat, 3/8"

3шт.

27

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

3шт.

28

T41928

CLAMP,3/16", Insul, 1/4" Bolt

1шт.

29

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

30

S221614

BRACKET - cable, support

1шт.

31

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 1/2"

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

35

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
