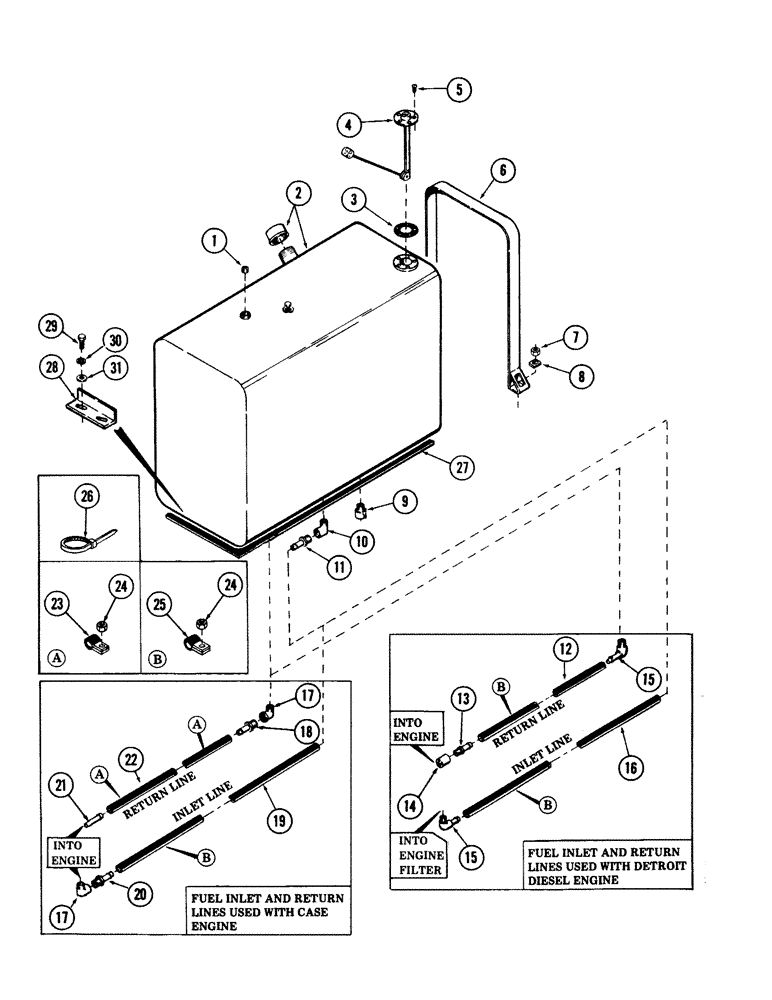

Запчасти Case 40 (080) - FUEL TANK AND LINES (10) - ENGINE

1

221-662

PLUG,Hex Hd, 1/4"-18

pipe - 1/4" NPT

1шт.

2

S514118

FUEL TANK

TANK, fuel

1шт.

S66921

FILLER CAP

CAP, fuel tank

1шт.

3

S49745

GASKET

GASKET

1шт.

4

S239445

ELECTRICAL GAUGE

GAUGE, fuel tank

1шт.

5

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

machine - No. 10 NF x 3/4"

5шт.

6

S93863

STRAP

fuel tank mounting

2шт.

7

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

4шт.

8

S108148

SPACER

4шт.

9

217-81

VALVE

shut-off

1шт.

10

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

90 degree - 3/8" NPT female x 3/8" NPT male

1шт.

11

220-7

FITTING

END, hose - fits 3/8" ID hose x 3/8" NPT male

1шт.

12

REF

INSTRUCTION

HOSE, low pressure - 108" long - cut from S118400

1шт.

13

220-3

FITTING

END, hose - fots 3/8" ID hose x 1/4" NPT male

1шт.

14

221-336

COUPLING,Pipe, 1/4" NPT

female x 1/4" NPT female Pipe, 1/4" NPT

1шт.

15

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

90 degree - fits 3/8" ID hose x 1/4" NPT male

2шт.

16

REF

INSTRUCTION

HOSE, low pressure - 135" long - cut from S118400

1шт.

17

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degree - 1/4" NPT male x 1/4" NPT female

2шт.

18

220-2

FITTING

END, hose - fits 1/4" ID hose x 1/4" NPT male

1шт.

19

REF

INSTRUCTION

HOSE, low pressure - 96" long - cut from S118400

1шт.

20

220-3

FITTING

END, hose - fits 3/8" ID hose x 3/8" NPT male

1шт.

21

S66490

TUBE

END, hose - fits 1/4" ID hose

1шт.

22

REF

INSTRUCTION

HOSE, low pressure - 84" long - cut from S118378

1шт.

23

S77322

CLAMP

hose

1шт.

24

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

25

49885

CLAMP

hose

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable - (Used with hoses)

1шт.

27

S224325

PAD

fuel tank

1шт.

28

S238105

ANGLE

tank mounting

1шт.

29

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

S95569

WASHER

hardened flat - 1/2"

2шт.

S118400

HOSE,0.38" ID x 300.00"

0.38" ID x 300.00"

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

0.25" ID x 168.00" Bulk, SAE 30R2 Type 3

1шт.
