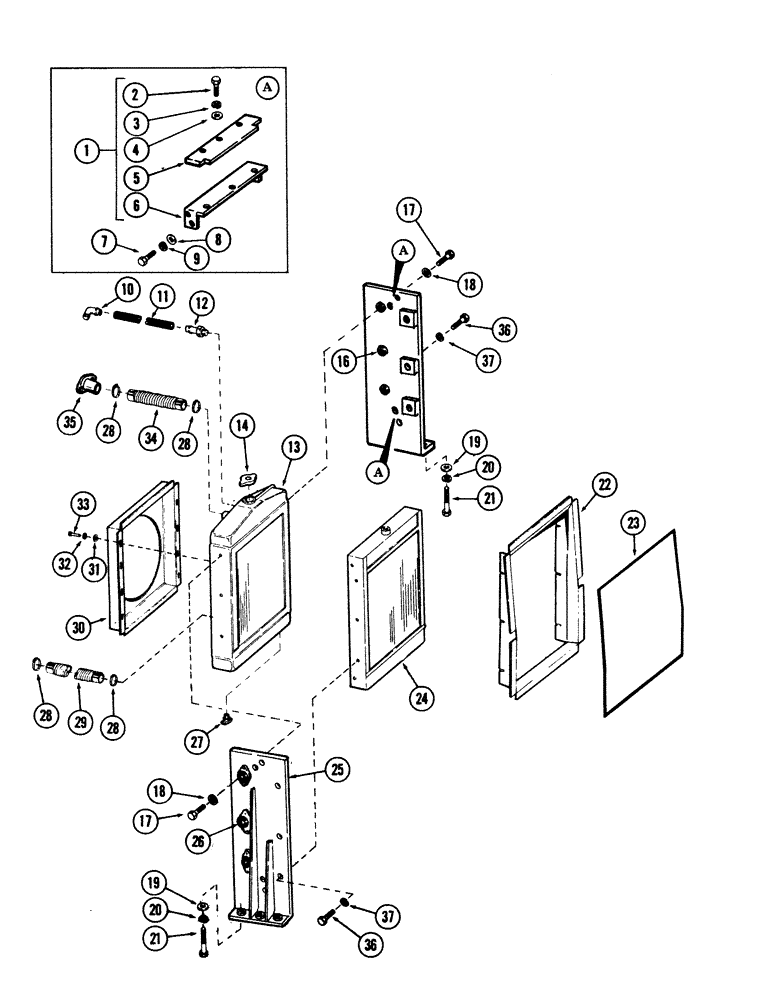

Запчасти Case 40 (078) - RADIATOR, OIL COOLER AND HOSES FOR: DETROIT DIESEL 4-71 ENGINE. (10) - ENGINE

1

S237245

BRACKET

support - (Upper and lower) - (Mounts between radiator and oil cooler), Includes: Ref. 2 - 6

2шт.

2

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

4

195-101

WASHER,3/16"

flat - 1/4"

3шт.

5

S237248

STRIP

1шт.

6

S237246

BRACKET

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Support bracket to radiator mounting brackets) Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

8

195-102

WASHER,1/4"

flat - 5/16"

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

END, 90 degrees hose - (Fits 3/8" ID hose) - 1/4" NPT male

1шт.

11

REF

INSTRUCTION

HOSE, low pressure - 12" long - cut from S118400

1шт.

12

220-3

FITTING

END, hose - (Fits 3/8" ID hose) - 1/4" NPT male

1шт.

13

S612782

RADIATOR

Includes: Ref. 14

1шт.

14

D25826

CAP

radiator - (7 lbs. pressure)

1шт.

15

S514305

BRACKET, radiator and cooler mounting - (Left hand), Includes: Ref. 16

1шт.

16

S76804

MOUNTING PARTS

MOUNT, lord

3шт.

ANOTHER MOUNT USED (NOT A SUB) PART IS S222918.

1шт.

17

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1" Gr 5, Serial Range: (Bracket-radiator)

6шт.

18

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

19

S95569

WASHER

flat - 1/2"

6шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

22

S611533

SHROUD, air duct

1шт.

23

REF

INSTRUCTION

SEAL - 120" long - cut from S118475

1шт.

24

S613672

COOLER, OIL

1шт.

25

S514306

BRACKET, radiator and cooler mounting - (Right hand), Includes: Ref. 26

1шт.

26

S76804

MOUNTING PARTS

MOUNT, lord

3шт.

ANOTHER MOUNT USED (NOT A SUB) PART IS S222918.

1шт.

27

A23656

COCK, DRAIN

DRAIN, radiator

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

29

S64061

HOSE,120.00 mm

RADIATOR HOSE, , Lower 120.00 mm

1шт.

30

S602534

SHROUD

- radiator

1шт.

31

195-101

WASHER,3/16"

flat - 1/4"

8шт.

32

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" - (Internal tooth)

8шт.

33

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

machine - 1/4" NC x 1/2"

8шт.

34

S67615

HOSE

radiator - (Upper)

11шт.

35

S235727

TUBE

1шт.

36

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Bracket to cooler) Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

S118400

HOSE,0.38" ID x 300.00"

0.38" ID x 300.00"

1шт.

S118475

SEAL

SEAL - 120" long

1шт.
