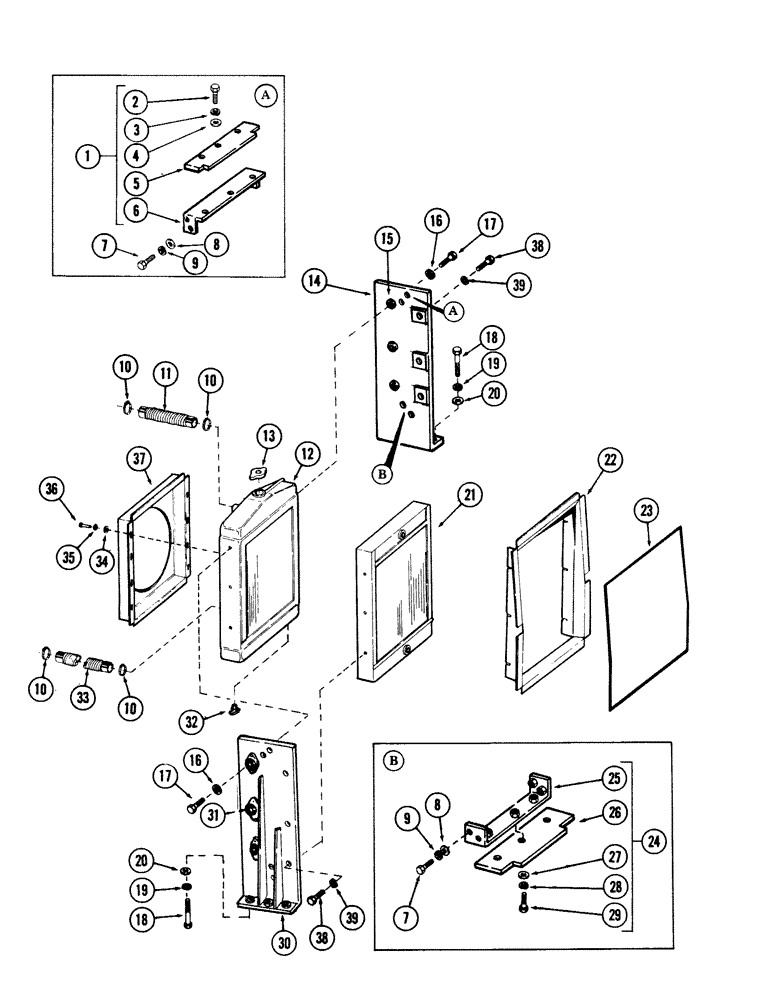

Запчасти Case 40 (076) - RADIATOR, OIL COOLER AND HOSES FOR: CASE 504 BDT DIESEL ENGINE. (10) - ENGINE

1

S237245

BRACKET

support - (Upper) - (Mounts between radiator and oil cooler), Includes: Ref. 2 - 6

1шт.

2

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

4

195-101

WASHER,3/16"

flat - 1/4"

3шт.

5

S237248

STRIP

3шт.

6

S237246

BRACKET

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Support bracket to radiator mounting brackets) Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

8

195-103

WASHER,5/16"

flat - 3/8"

8шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

10

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose

4шт.

11

S94323

RADIATOR HOSE,2.50" ID x 8.25", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.25", SAE 20R4 CLASS SC

1шт.

12

S614013

RADIATOR

Includes: Ref. 13

1шт.

13

D25826

CAP

radiator

1шт.

14

S514308

BRACKET, radiator and cooler mounting - (Left hand), Includes: Ref. 15

1шт.

15

S76804

MOUNTING PARTS

MOUNT, lord

3шт.

16

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

17

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1" Gr 5

6шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

20

S95569

WASHER

flat - 1/2"

6шт.

21

S613672

COOLER, OIL

1шт.

22

S611534

SHROUD

air duct

1шт.

ANOTHER SHROUD USED (NOT A SUB) PART IS S616751

1шт.

23

REF

INSTRUCTION

SEAL - 120" long - cut from S118475

1шт.

24

S237266

BRACKET

support - (Lower) - (Mounts between radiator and oil cooler), Includes: Ref. 25 - 29

1шт.

25

S237267

BRACKET

1шт.

26

S237269

STRIP

1шт.

27

195-101

WASHER,3/16"

flat - 1/4"

3шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

29

114-19

BOLT,Hex, 1/4" - 28 x 4-1/2", Gr 5

- 1/4" NF x 4-1/2" Gr 5

3шт.

30

S514307

BRACKET, radiator and cooler mounting - (Right hand), Includes: Ref. 31

1шт.

31

S76804

MOUNTING PARTS

MOUNT, lord

3шт.

32

A23656

COCK, DRAIN

DRAIN, radiator

1шт.

33

S95994

HOSE

2.50" ID x 20.00", SAE 20R5, Radiator, Lower

1шт.

34

195-101

WASHER,3/16"

flat - 1/4"

8шт.

35

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" - (Internal tooth)

8шт.

36

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

machine - 1/4" NC x 1/2"

8шт.

37

S602543

SHROUD

radiator

1шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Bracket to cooler) Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

S118475

SEAL

SEAL - 120" long

1шт.
