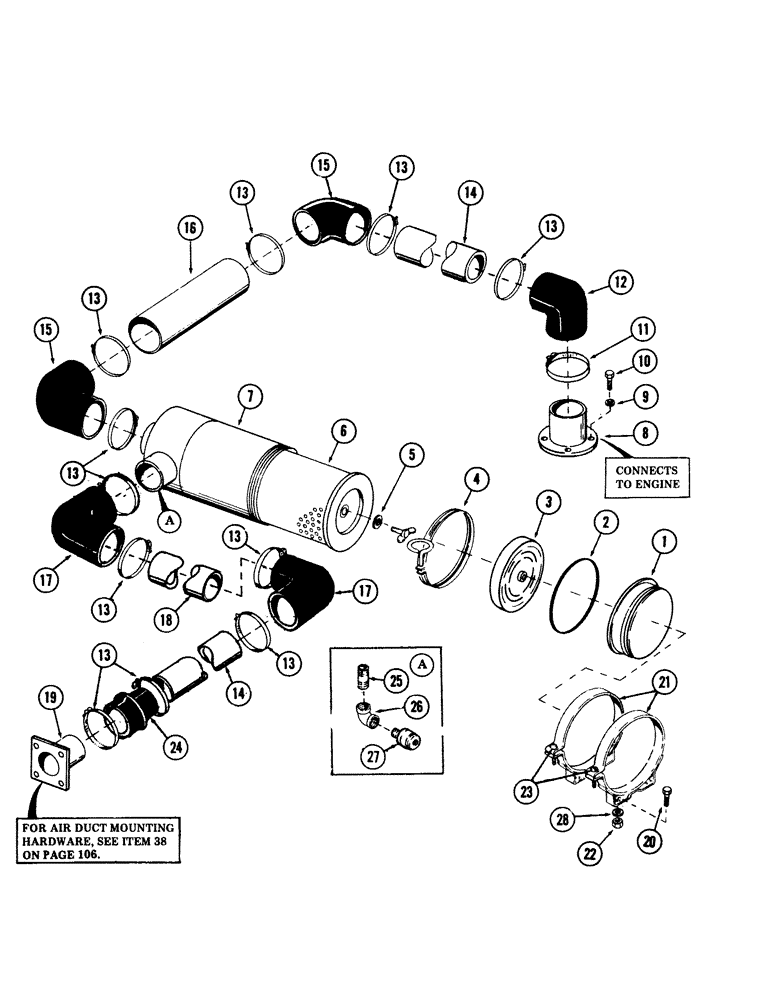

Запчасти Case 40 (074) - AIR CLEANER AND ATTACHING PARTS FOR: DETROIT DIESEL 4-71 ENGINE. (10) - ENGINE

S609421

AIR CLEANER

CLEANER - air, Includes: Ref. 1 - 7

1шт.

1

S221315

COVER

CUP

1шт.

2

L30943

GASKET

O-RING

1шт.

3

S221314

BAFFLE

1шт.

4

S94175

CLAMP

1шт.

5

L35499

NUT

SCREW ASSEMBLY

1шт.

6

S231996

AIR FILTER

ELEMENT - air cleaner

1шт.

7

S231995

BODY

- air cleaner

1шт.

8

S230325

LINE,6.5" L

FLANGE - (Mounts to air intake on engine)

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

11

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

1шт.

12

S513100

ELBOW

- 90 degree rubber

1шт.

13

214-363

CLAMP,#140, 5.25"-5.56", T-Bolt

1шт.

14

S239248

TUBE 5" OD x 25" L

2шт.

15

L74362

ELBOW

- 45 degree rubber

2шт.

16

S113713

TUBE 5" OD x 19.06" L

1шт.

17

S235918

ELBOW

- 45 degree rubber

2шт.

18

S11373

TUBE

1шт.

19

S236330

DUCT - air

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

S219922

BAND

- mounting

2шт.

22

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

4шт.

23

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

24

T51474

ADAPTER

HUMP - straight

1шт.

25

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" NPT x 3/4" long

1шт.

26

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degrees, 1/8" NPT female x 1/8" NPT female

1шт.

27

A59569

INDICATOR

FILTER INDICATOR - air cleaner

1шт.

28

195-525

WASHER,3/8", SAE

- flat, 7/16"

4шт.
