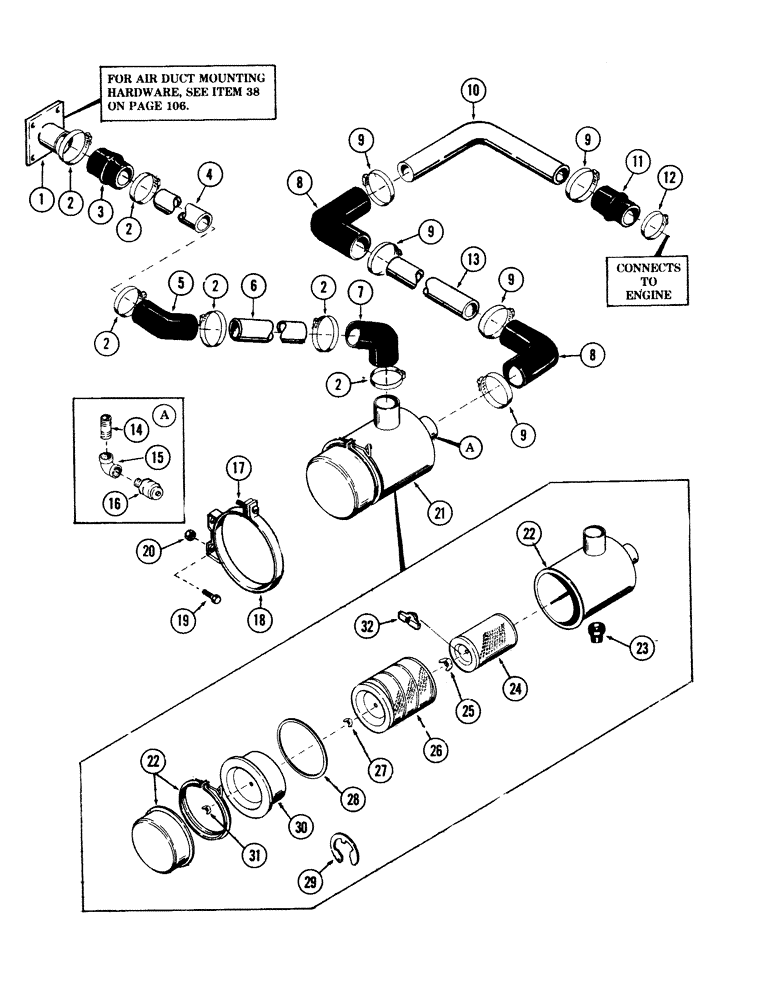

Запчасти Case 40 (072) - AIR CLEANER AND ATTACHING PARTS FOR: CASE 504BDT DIESEL ENGINE. (10) - ENGINE

1

S236330

DUCT - air

1шт.

2

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP

1шт.

3

T51474

ADAPTER

HUMP - straight

1шт.

4

S113713

TUBE 5" OD x 19.06" L

1шт.

5

L74362

ELBOW

- 90 degree rubber

1шт.

6

S99845

TUBE

1шт.

7

S235918

ELBOW

- 45 degree rubber

1шт.

8

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

2шт.

9

214-361

CLAMP,#108, 4.25"-4.56", T-Bolt

1шт.

10

S239244

TUBE 4" OD x 14, 14.5" L

1шт.

11

S106022

REDUCER

HUMP - reducer

1шт.

12

214-358

CLAMP,#80, 3.37"-3.68", T-Bolt

1шт.

13

S80630

TUBE ASSY.,4" OD x 5" L

TUBE

1шт.

14

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" NPT x 3/4" long

1шт.

15

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, 1/8" NPT female x 1/8" NPT female

1шт.

16

A59569

INDICATOR

FILTER INDICATIOR - air cleaner

1шт.

17

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

(Replaces hardware in mounting bands) Hex, 5/16"-18 x 1 3/4", G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

S238773

CLAMP

BAND - mounting

2шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

4шт.

21

S615146

CLEANER

- air, Includes: Ref. 22 - 31

1шт.

22

S238645

BODY

ASSEMBLY

1шт.

23

L30417

VALVE

1шт.

24

S238647

AIR FILTER

ELEMENT - safety

1шт.

25

F91761

WING NUT

- safety

1шт.

26

S238646

AIR FILTER

ELEMENT - primary

1шт.

27

A47143

NUT

- primary

1шт.

28

S117039

GASKET,Square, 8.89mm Thk x 274.57mm ID

1шт.

29

S117040

CIRCLIP

CLIP

1шт.

30

S117038

COVER

1шт.

31

A47102

WING NUT

1шт.

32

S117730

INDICATOR - service, safety element (Replaces Ref. 25)

1шт.
