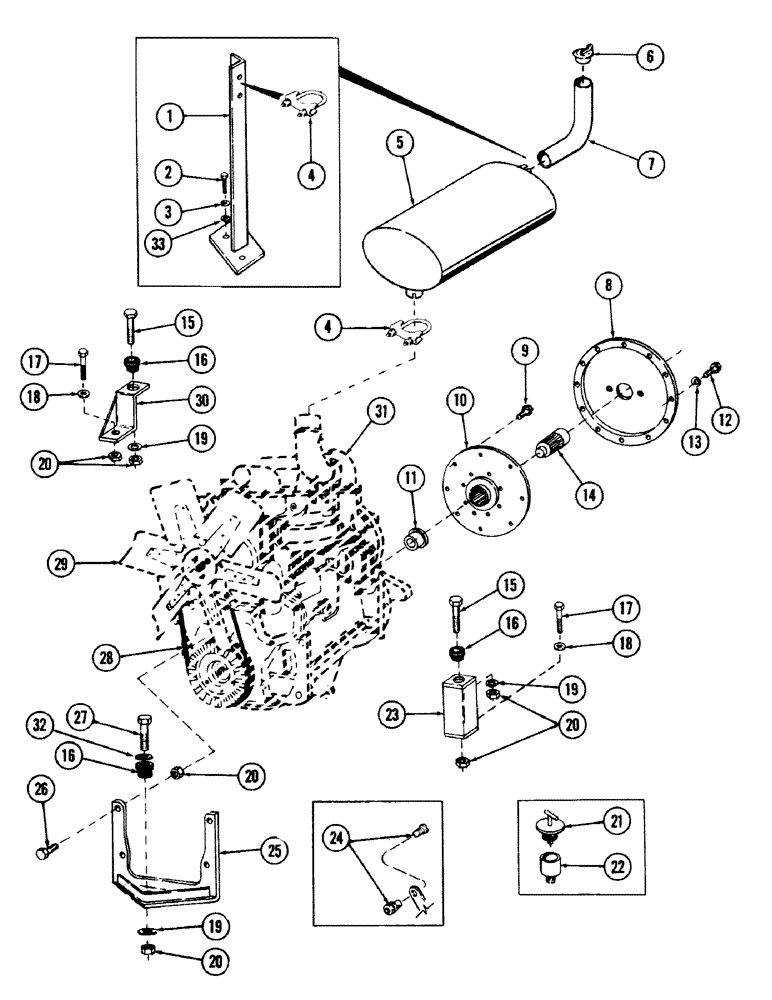

Запчасти Case 40 (068) - ENGINE AND DROTT ATTACHING PARTS FOR: CASE 504BDT DIESEL ENGINE. (10) - ENGINE

1

S234041

BRACKET

muffler mounting

1шт.

2

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

- 3/8" NC x 1" Gr 5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

A17851

CLAMP

muffler

2шт.

5

S231674

MUFFLER

1шт.

6

A19795

CAP

pipe

1шт.

7

S99158

ELBOW

PIPE, exhaust

1шт.

8

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

9

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

- 3/8" NC x 5/8" Gr 8

8шт.

10

S33201

DAMPER

DAMPENER, pump drive

1шт.

ANOTHER DAMPENER AND COUPLING USED (NOT A SUB) USE S515001 AND S229599

1шт.

11

S114646

ADAPTER

- (Into flywheel)

1шт.

ANOTHER ADAPTER USED (NOT A SUB) S87483

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" NC x 2" Gr 5 - (Mounts relay mounting bracket to pump bracket)

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

14

S63201

COUPLING

1шт.

15

15-1284

BOLT

- 3/4" NC x 5-1/4" Gr 5

2шт.

16

S112578

MOUNTING PARTS

MOUNT, rubber

3шт.

17

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

2шт.

18

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat - 3/4"

2шт.

19

195-2270

WASHER,13/16" x 3" x .238", HDN

flat - 3/4"

3шт.

20

131-450

NUT,3/4"-10

NUT, self locking - 3/4" NC

9шт.

21

S236763

PLUG

filler

1шт.

22

S236764

PIPE

filler

1шт.

23

S232820

BRACKET

engine mounting, (Rear) - (Left hand)

1шт.

24

A59101

PIVOT

stop

1шт.

25

S229621

BRACKET

engine mounting - (Front)

1шт.

26

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

27

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" NC x 4-1/4" Gr 5

1шт.

28

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Alternator (Matched set of 2) 0.69" W x 60.00" L

1шт.

29

S513093

FAN

22" suction

1шт.

A61283

BUSHING

SPACER, fan

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Mounts fan and spacer to engine Hex, 3/8"-16 x 2 1/2", G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

S232821

BRACKET

engine mounting - (Rear) - (Right hand)

1шт.

31

A151317

GASKET

ENGINE, CASE 504 BDT diesel

1шт.

32

195-45

WASHER,3/4"

1шт.

33

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 3/8"

2шт.
