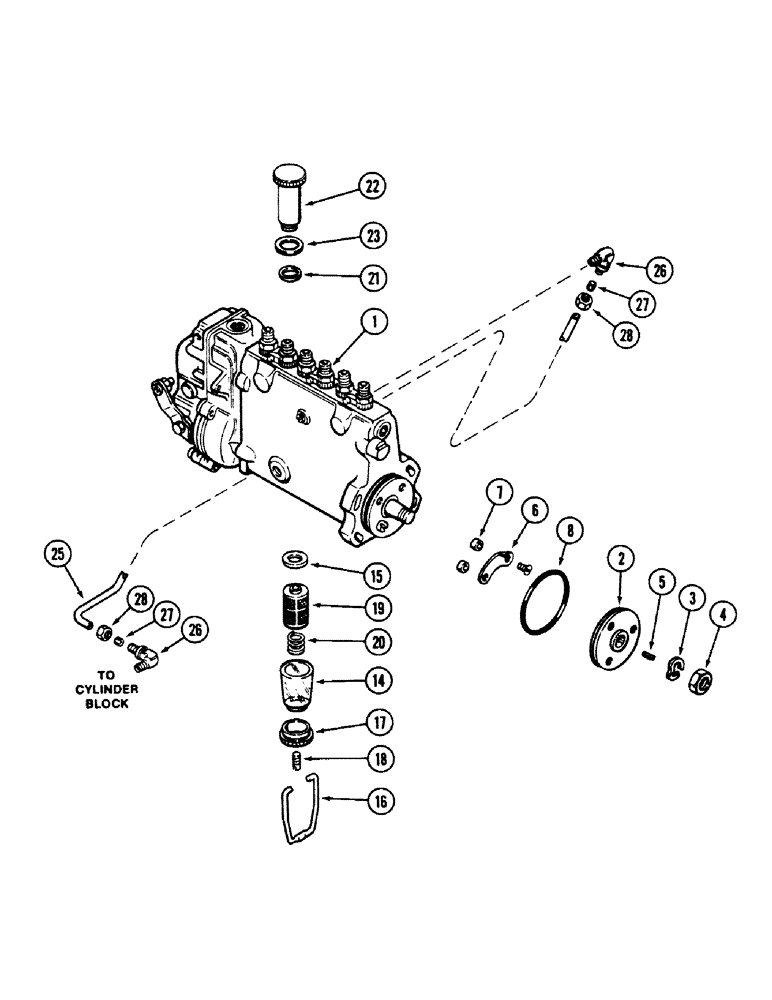

Запчасти Case 40 (040) - FUEL INJECTION PUMP, 504BDT ENGINE (10) - ENGINE

1

A154766

PUMP

ASSEMBLY - fuel injection (2100 RPM), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub

1шт.

5

A41850

KEY

-, Serial Range: hub-shaft

1шт.

6

A41858

INDICATOR

POINTER - adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

O RING - hub, 3 x 3-3/16 x 1/8" (76.2 x 80.96 x 3.17 MM)

1шт.

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - metric, 4 x 0.7 x 8 hex (Grade 8) (Not shown)

1шт.

14

A43347

BOWL

- glass, filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

- copper, primer pump

1шт.

22

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- rubber

1шт.

25

A136903

TUBE

- lube, Serial Range: pump-block

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 1/4" tube x 1/8" PT 90 degree, Includes: Ref. 27 and 28

2шт.

27

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.
