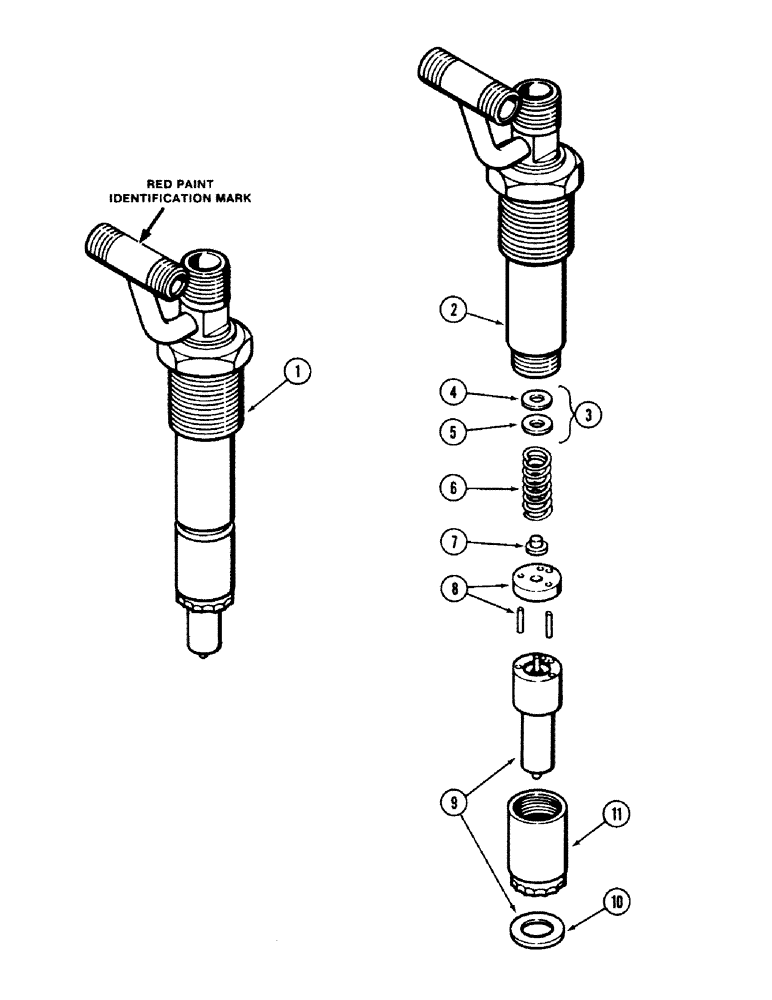

Запчасти Case 40 (038) - INJECTOR NOZZLE, 504BDT ENGINE (10) - ENGINE

1

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - injector, red paint identification, Includes: Ref. 2 - 11

6шт.

A156327R

REMAN-INJECT NOZZLE

40 (S/N 6271140 & AFTER)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A44860

SHIM

KIT - shim, nozzle opening pressure (One kit required to repair six nozzles), Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SHIM - 0.062" (1.57 MM)

6шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.002" (0.05 MM)

80шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.007" (0.18 MM)

50шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.010" (0.25 MM)

50шт.

5

NSS

NOT SOLD SEPARAT

SHIM - 0.025" (0.64 MM)

20шт.

6

A44864

SPRING

- nozzle pressure adjusting

1шт.

7

A44863

SEAT

- spring

1шт.

8

A44862

VALVE

STOP - nozzle, includes dowel pins

1шт.

9

A142969

NOZZLE CAP

TIP ASSEMBLY - nozzle injector, Includes: Ref. 10

1шт.

10

1342829C1

GASKET

- nozzle; Replaces A76640

1шт.

Whenever nozzle is removed from head, A76640 gasket must be replaced before nozzle is installed back in head.

1шт.

11

A44861

NUT

NUT - nozzle end

1шт.
