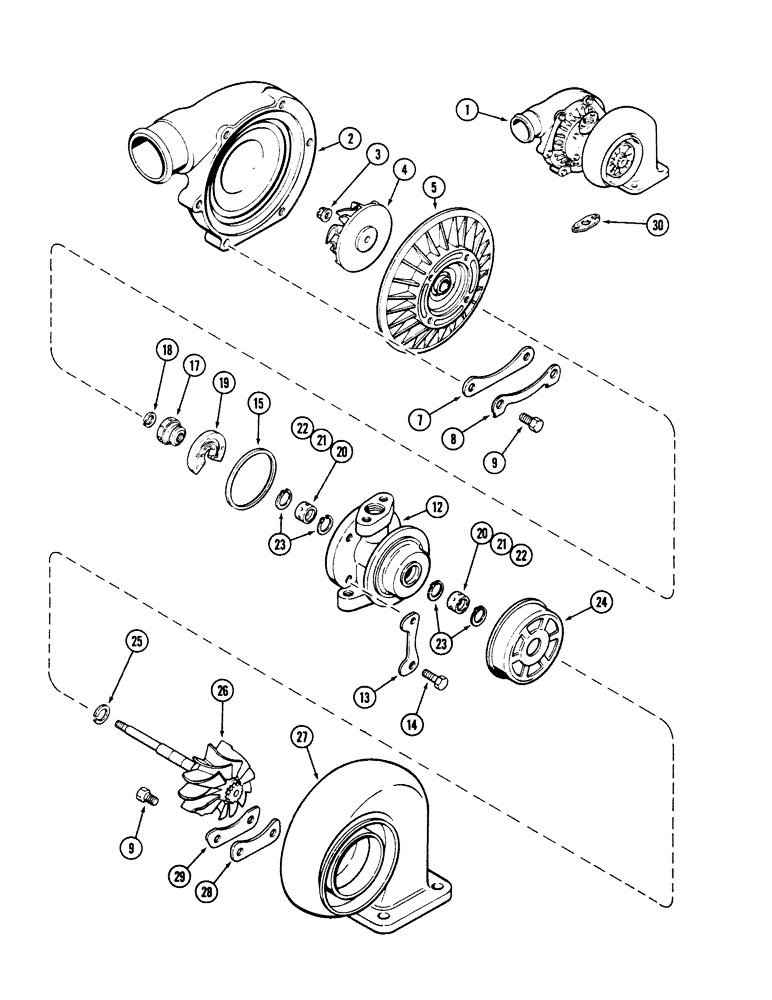

Запчасти Case 40 (012) - TURBOCHARGER, 504BDT ENGINE (10) - ENGINE

A157336

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

40 Drott Series E Crawler Exc.SN 6271140 & Aft.

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

A44499

TURBOCHARGER

ASSEMBLY - remanufactured, Includes: Ref. 2 - 29

1шт.

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

A44498

CORE-TURBOCHARGER

Return Part Number - use the part number to return turbocharger core for credit, Includes: Ref. 2 - 29

1шт.

1

A76341

STUD

TURBOCHARGER ASSEMBLY - new, Includes: Ref. 2 - 29

1шт.

2

A45096

HOUSING

- compressor wheel

1шт.

3

A44831

NUT

- lock, compressor wheel

1шт.

4

A45016

IMPELLER

- compressor

1шт.

5

A45095

PLATE

ASSEMBLY - back, includes thrust spring

1шт.

7

A44838

CLAMP

-, Serial Range: backplate-housing

3шт.

8

A44839

PLATE

- clamp bolt lock

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16 x 1" NC hex (Grade 5)

12шт.

12

A44825

HOUSING

- center

1шт.

13

A44820

PLATE

- housing bolt lock

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

15

A44833

RING

- seal, center housing

1шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

17

A44830

COLLAR

- thrust, compressor

1шт.

18

A44828

RING

- piston, 1/2" (12.7 MM) OD

1шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

20

A44826

BEARING

- center, Standard

2шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

21

A44849

BUSHING

BEARING - center, 0.005" undersize, 0.13 MM

2шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

22

A44850

BUSHING

BEARING - center, 0.010" undersize, 0.25 MM

2шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

23

A44827

RING

- snap, bearing retainer

4шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

24

A45091

GUARD

SHROUD - center housing side wheel

1шт.

25

A44829

RING

- piston, 23/32" (18.26 MM) OD

1шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

26

A44841

WHEEL

- turbine

1шт.

27

A44840

HOUSING

- turbine

1шт.

28

A44823

CLAMP

- turbine housing

3шт.

29

A44824

PLATE

- turbine housing bolt lock

3шт.

30

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

Part of Center Bearing Standard Kit, P/N A45344

1шт.

Part of Center Bearing 0.0005" Undersize, P/N A45345

1шт.

Part of Center Bearing 0.010" Undersize, P/N A45346

1шт.

A45344

KIT

- center bearing standard, Includes: ref. nos. 20, 15, 18, 19, 23, 25, 30

1шт.

A45345

KIT

- center bearing, 0.005" undersize, 0.13 MM, Includes: ref. nos. 21, 15, 18, 19, 23, 25, 30

1шт.

A45346

KIT

- center bearing, 0.010" undersize, 0.25 MM, Includes: ref. nos. 22, 15, 18, 19, 23, 25, 30

1шт.
