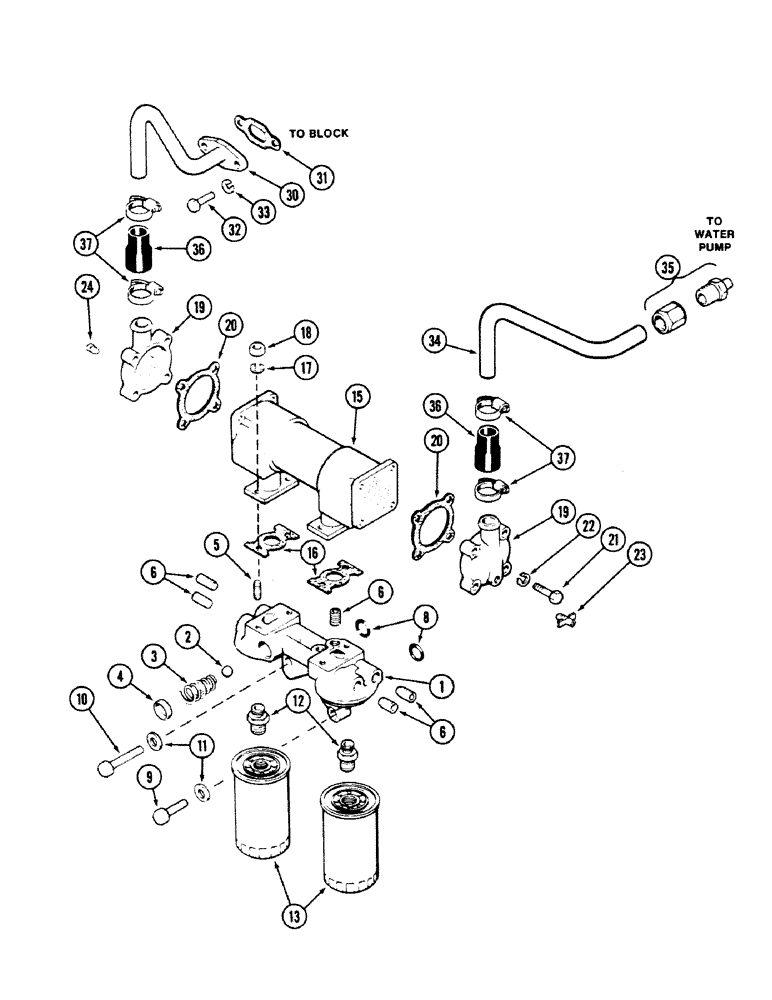

Запчасти Case 40 (006) - OIL FILTER AND HEAT EXHANGER, 504BDT ENGINE (10) - ENGINE

1

A154541

BASE

ASSEMBLY - filter and heat exchanger, Includes: Ref. 2 - 6

1шт.

2

211-17

BALL,3/4" Dia

- relief valve, meter (19.05 MM) 3/4" Dia

1шт.

3

A146897

SPRING

- relief valve, 2-13/16" (71.44 MM) free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup 1-1/4" diameter (31.79 MM)

1шт.

5

G102128

BOLT

- 3/8" NC x 1-1/2"

4шт.

6

221-1844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket head

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil port, 15/16 x 1-5/16 x 1/8" (23.81 x 33.34 x 3.17 MM)

2шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

11

195-33

WASHER,1/2"

- 1/2 x 1-1/16 x 3/32" (12.7 x 26.99 x 2.38 MM)

2шт.

12

A63916

ADAPTER

- filter element

2шт.

13

A75294

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

15

A75295

OIL COOLER

HEAT EXCHANGER - engine oil

1шт.

16

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

A64349

HOOD

COVER - end, heat exchanger

2шт.

20

A63920

GASKET

- cover

2шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

23

217-107

VALVE

- drain, 1/8" PT

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

1шт.

30

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube flange

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

34

A75298

TUBE

- heat exchanger to water pump

1шт.

35

222-2020

FITTING

CONNECTOR - 1" tube x 3/4" PT

1шт.

36

A64353

HOSE

-, Serial Range: tube-cover

2шт.

37

218-256

FITTING

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

4шт.
