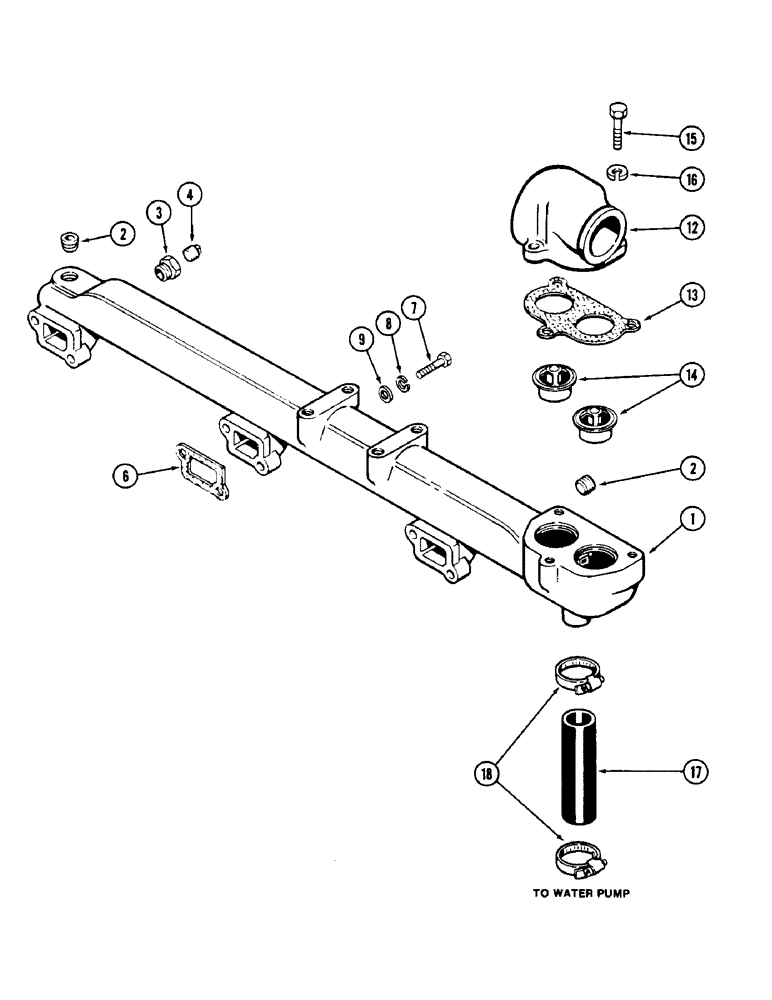

Запчасти Case 40 (003) - WATER MANIFOLD AND THERMOSTAT, 504BDT ENGINE (10) - ENGINE

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - water (Order components Ref 1 thru 4)

1шт.

1

A152742

MANIFOLD

1шт.

2

221-1844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket

2шт.

3

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8" PT

1шт.

4

221-1843

PLUG

- 3/8" PT hex socket

1шт.

6

A58637

MANIFOLD GASKET

-, Serial Range: manifold-head

3шт.

7

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 MM)

6шт.

12

A60689

HOUSING

- thermostat

1шт.

13

A58639

GASKET

-, Serial Range: housing-manifold

1шт.

14

A57641

THERMOSTAT

- 180 degrees F (82 degrees C)

2шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4 ID x 5-1/4" long (31.75 x 133.35 MM)

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16 to 1-3/4" (20.64 to 44.45 MM)

2шт.
