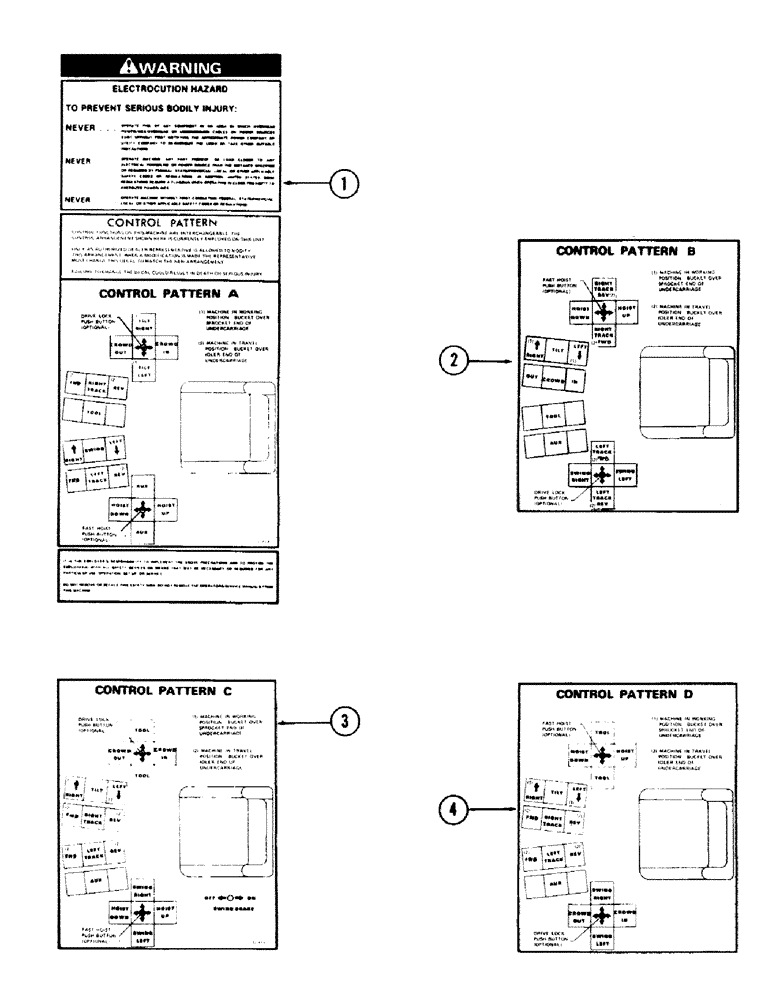

Запчасти Case 40 (266) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-6314

DECAL

- control pattern "A" (Standard)

1шт.

ANOTHER ROD USED (NOT A SUB)USE S48765

1шт.

2

S616905

KIT - decal - control pattern "B" (Optional)

1шт.

ANOTHER ROD USED (NOT A SUB)USE S48765

1шт.

321-6315

DECAL

- control pattern "B"

1шт.

S616908

PRINT - installation instructions - control pattern "B"

1шт.

3

S616906

KIT - decal - control pattern "C" (Optional)

1шт.

ANOTHER ROD USED (NOT A SUB)USE S48765

1шт.

321-6316

DECAL

- control pattern "C"

1шт.

S616909

PRING - installation instructions - control pattern "B"

1шт.

4

S616907

KIT - decal - control pattern "D" (Optional)

1шт.

IMPORTANT: Industry has not standardized control patterns for machines of this class. Because of the design of this machines's hydraulic system, many patterns could be chosen. However, J I Case will authorize the use of only four (4) patterns. The only person authorized by J I Case to change the control pattern on this machine is a J I Case Dealer. Under no conditions is an owner, operator, or his representative authorized to make this change. If a control pattern change is made by the J I Case Dealer,

1шт.

321-6317

DECAL

- control pattern "D"

1шт.

S616910

PRINT - installation instructions - control pattern "D"

1шт.
