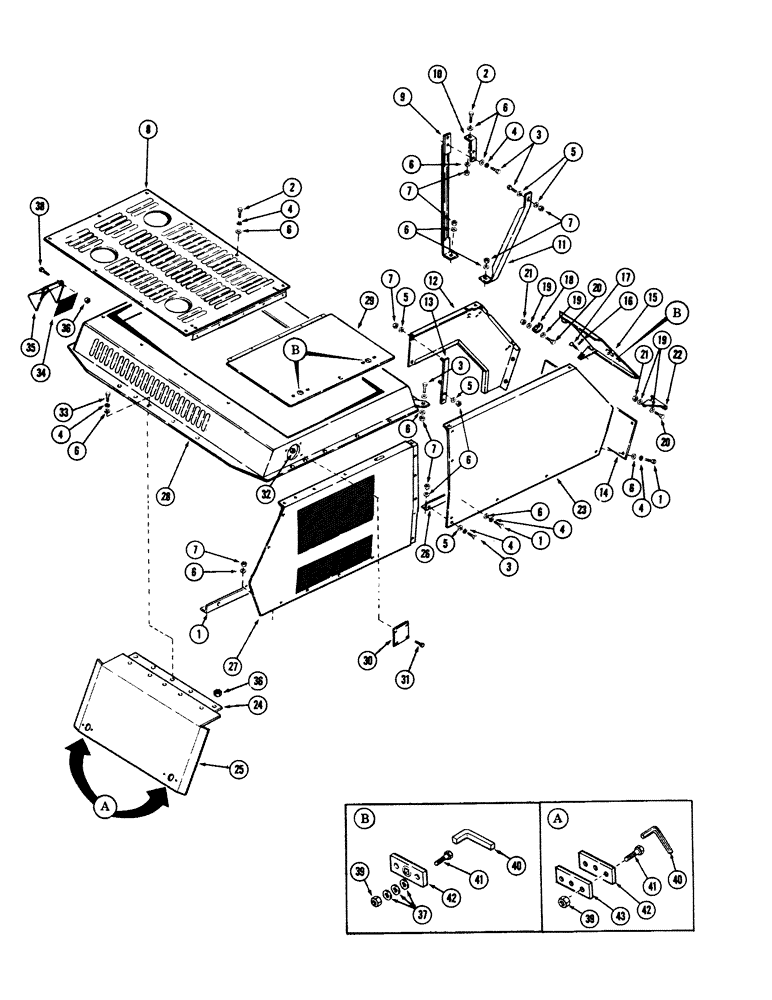

Запчасти Case 40 (106) - TURNTABLE SHROUDING, (TOP AND RIGHT SIDE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S239110

ANGLE

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S95569

WASHER

hardened flat - 1/2"

1шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 1/2"

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

8

S613333

COVER, engine - (Used on units with Detroit diesel engine) - (Illustrated)

1шт.

S613334

COVER, engine - (Used on units with Case diesel engine) - (Not illustrated)

1шт.

9

S231608

BRACE

shroud support

1шт.

ANOTHER BRACE USED (NOT A SUB) USE S240494

1шт.

10

S108326

ANGLE

, Serial Range: brace-shroud

1шт.

11

S235917

BRACE, Serial Range: turntable-shroud

1шт.

ANOTHER BRACE USED (NOT A SUB) USE S240494

1шт.

12

S60687

SHROUD

1шт.

SHOULD READ S606687

1шт.

13

S239820

SUPPORT

shroud

1шт.

14

S219775

SHEET

COVER

1шт.

15

S513408

DOOR

front

1шт.

16

A70250

PIN

hair

1шт.

17

S217887

PIN

door holder

1шт.

18

S221455

BRACKET

door mounting

1шт.

19

195-103

WASHER,5/16"

flat - 3/8"

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

21

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

22

S221453

BRACKET

door holder

1шт.

23

S615711

SHROUD, right front

1шт.

24

S239107

HINGE

1шт.

25

S615558

DOOR, rear

1шт.

26

S239471

ANGLE, shroud mount

1шт.

27

S615555

SHROUD, right rear

1шт.

28

S956075

SHROUD, engine

1шт.

29

S513390

DOOR, engine access

1шт.

30

S115087

PLATE

1шт.

31

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

32

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" NC

1шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8" NC x 1-1/4" Gr 5

8шт.

34

S114094

SCREEN

1шт.

35

S613256

COVER, screen

1шт.

36

131-52

NUT,3/8"-16, GC

NUT - 3/8" NC

1шт.

37

195-103

WASHER,5/16"

flat - (Used as spacers)

1шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- 1/4" NC x 1" gr 5

2шт.

39

131-461

LOCK NUT,1/4"-20

NUT, self locking, 1/4" NC

6шт.

40

S115083

KEY

angle

1шт.

41

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" Gr 5

6шт.

42

S110414

LOCK

4шт.

43

S110415

SPACER

2шт.

44

S219473

BRACE

LEFT HAND - (Not illustrated)

1шт.

45

S219460

BRACE

RIGHT HAND - (Not illustrated)

1шт.

46

S239902

BRACKET - (Not illustrated)

1шт.
