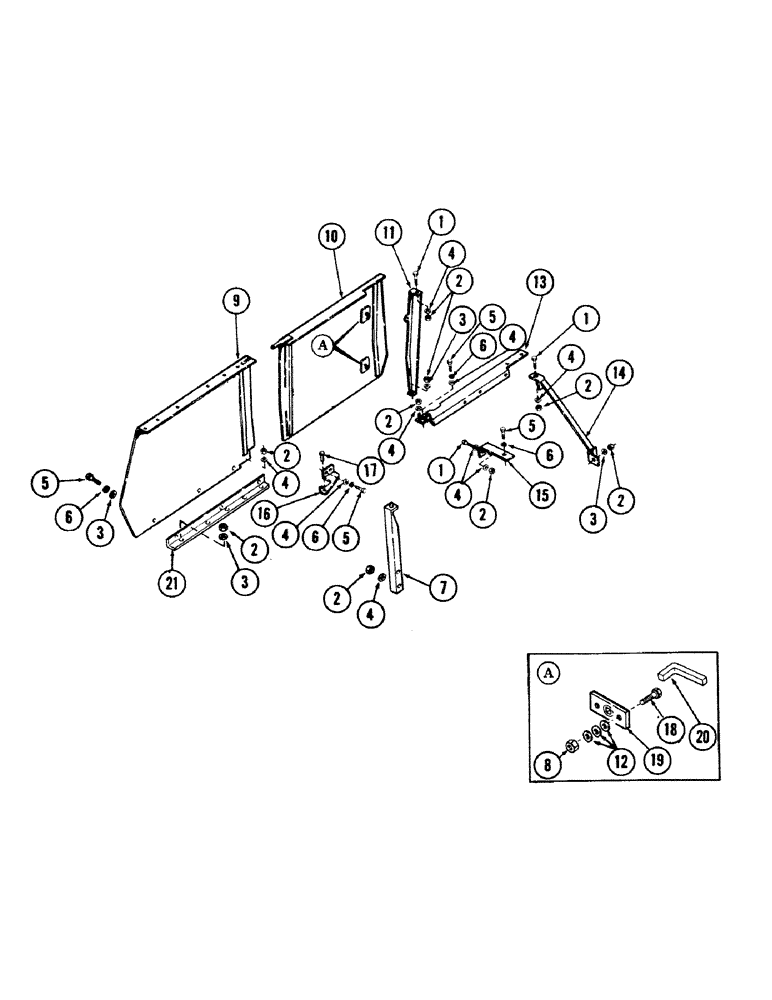

Запчасти Case 40 (104) - TURNTABLE SHROUDING, (LEFT SIDE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

ANOTHER BOLT USED (NOT A SUB )USE 113-417

1шт.

2

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

ANOTHER PART USED (NOT A SUB) USE 131-70

1шт.

3

S95569

WASHER

hardened flat - 1/2"

1шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened flat - 1/2"

1шт.

5

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

ANOTHER PART USED (NOT A SUB) USE 131-70

1шт.

7

S239690

SUPPORT, brace to oil tank

1шт.

8

131-461

LOCK NUT,1/4"-20

NUT, self locking, 1/4" NC

4шт.

9

S615709

SHROUD, left rear

1шт.

10

S615708

DOOR, left front

1шт.

11

S514649

BRACE

door stop

1шт.

ANOTHER BRACE USED (NOT A SUB) S515515

1шт.

12

195-516

WASHER,#12

Flat #12

1шт.

13

S514647

BRACKET

1шт.

14

S511863

BRACE, door stop

1шт.

15

S226314

ANGLE

1шт.

ANOTHER BRACE USED (NOT A SUB) USE S240494

1шт.

16

S237119

BRACKET, door holder

1шт.

17

S217887

PIN

1шт.

18

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- 1/4" NC x 7/8" Gr 5

4шт.

19

S110414

LOCK

2шт.

20

S115083

KEY

angle

2шт.

21

S239109

ANGLE

1шт.
