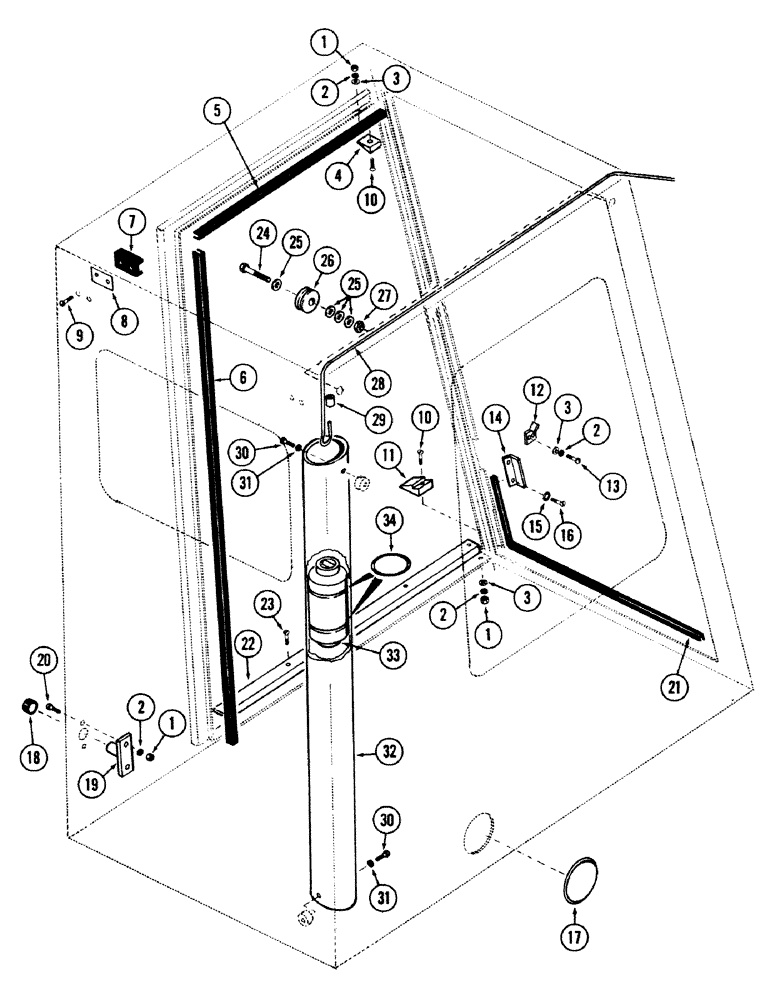

Запчасти Case 40 (100) - CAB AND ATTACHING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
S956135
CAB
ASSY, Includes: Ref. 1 - 23
1шт.
1
7770
NUT,Hex, 1/4 - 20, Cl 5
8шт.
2
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
2шт.
3
195-518
WASHER,1/4", SAE
- flat, 1/4"
10шт.
4
S117532
STRIKER PLATE
1шт.
5
REF
INSTRUCTION
SEAL - 30-1/2" long - cut from S118479
1шт.
6
REF
INSTRUCTION
SEAL - 59-1/2" long - cut from S118479
1шт.
7
S117701
PAD - mounting
2шт.
8
S118210
SHIM
6шт.
10
73-48
SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"
- 1/4" NC x 1/2"
2шт.
11
A36080
PLATE
STRIKER PLATE
1шт.
12
S117705
WEDGE
2шт.
13
182-204
SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"
- 1/4" NC x 3/4"
4шт.
14
S117651
TRACK
2шт.
15
193-52
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, LOCK, Ext Csk Tooth, 1/4"
4шт.
16
73-48
SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"
- 1/4" NC x 1/2"
4шт.
17
S117638
PLUG
1шт.
18
S117543
BUMPER
1шт.
19
S239654
CATCH
1шт.
20
182-202
SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"
- 1/4" NC x 1/2"
2шт.
21
REF
INSTRUCTION
SEAL - trim, 63" long - cut from S118480
1шт.
22
S239626
ANGLE
- sill
1шт.
23
187-1123
SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"
SCREW - No. 8 NC x 1/2"
5шт.
24
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
4шт.
25
195-525
WASHER,3/8", SAE
- flat, 3/8"
45шт.
26
S117521
PULLEY
4шт.
28
S117548
METAL ROPE
CABLE - 2 pieces, 1/8" dia x 108" long
1шт.
29
S117815
SLEEVE
- splicing
4шт.
30
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
4шт.
31
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
4шт.
32
S239687
TUBE,3" ID x 54.4" L
- (Right hand) (Illustrated)
1шт.
S239688
TUBE,3" ID x 54.4" L
- (Left hand) (Not illustrated)
1шт.
33
S239689
WEIGHT
2шт.
34
G10389
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
- 2.609" ID x 2.887" OD
4шт.
35
S61769
HOOK
COAT HOOK - (Not illustrated)
1шт.
S118479
SEAL
- 90" long
1шт.
S118480
SEAL
SEAL - 600" long
1шт.
Выбрано товаров: 39
