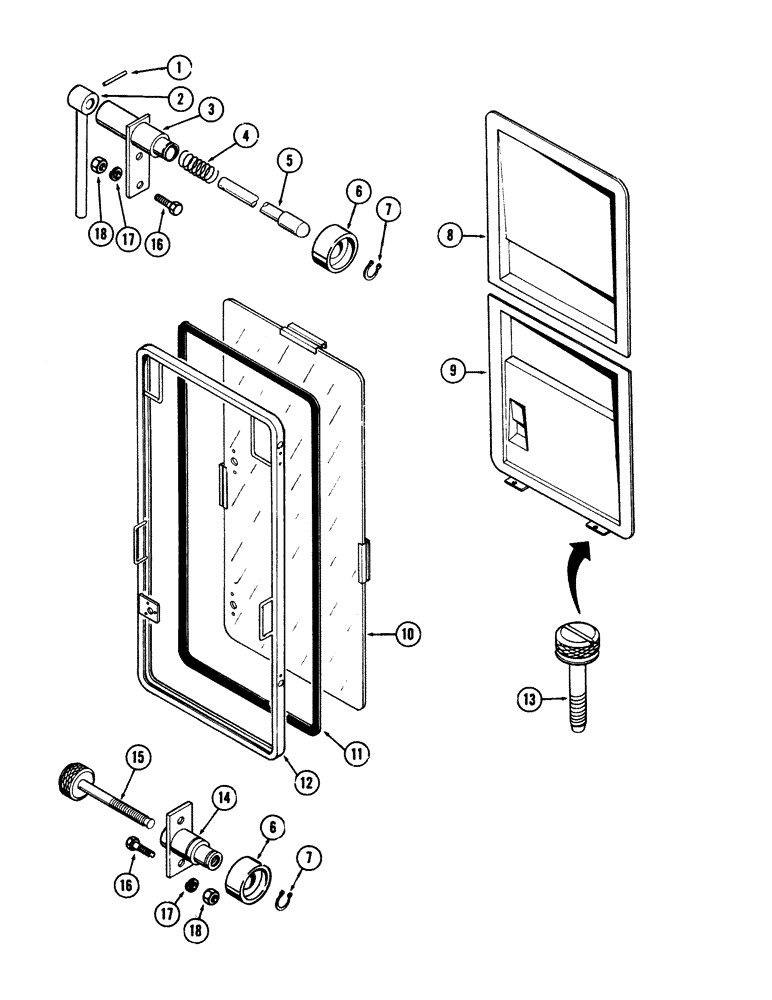

Запчасти Case 40 (098) - CAB WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

S956135

CAB

ASSY, Includes: Ref. 1 - 20

1шт.

1

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

2шт.

2

S239621

HANDLE

2шт.

3

S239686

SHAFT

2шт.

4

A58271

SPRING

2шт.

5

S239677

PIN

2шт.

6

S117522

ROLLER

4шт.

7

S117634

RING, SNAP

RING - retaining

4шт.

8

S616525

GUARD

- upper vandal

1шт.

9

S616524

GUARD

- lower vandal

1шт.

10

S616088

WINDOW

WINDSHIELD

1шт.

MEASURES 26.25 CENTER TO CENTER HOLE DISTANCE. WHEN IT MEASURES 23.75 ORDER N60257.

1шт.

11

REF

INSTRUCTION

SEAL - 180" long - cut from S118478

1шт.

12

S956335

FRAME - windshield

1шт.

13

S109773

FASTENER

LOCK - vandal guard

2шт.

14

S239618

SHAFT

2шт.

15

S117544

CLAMP

2шт.

16

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" NC x 3/4"

8шт.

17

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

8шт.

19

S117550

SHIM - used with item 3 (Not illustrated)

8шт.

20

S117551

SHIM

- used with item 14 (Not illustrated)

8шт.

S118478

SEAL

- 600" long

1шт.

SERIAL NUMBER 6271245 AND UP S617808 WINDSHIELD (GLASS CLEAR) MEASURES 23.75 C TO C,ALSO N60257 WINDSHIELD (TINTED BLUE GREEN) MEASURES 23.75 C TO C. 9/12/96

1шт.
