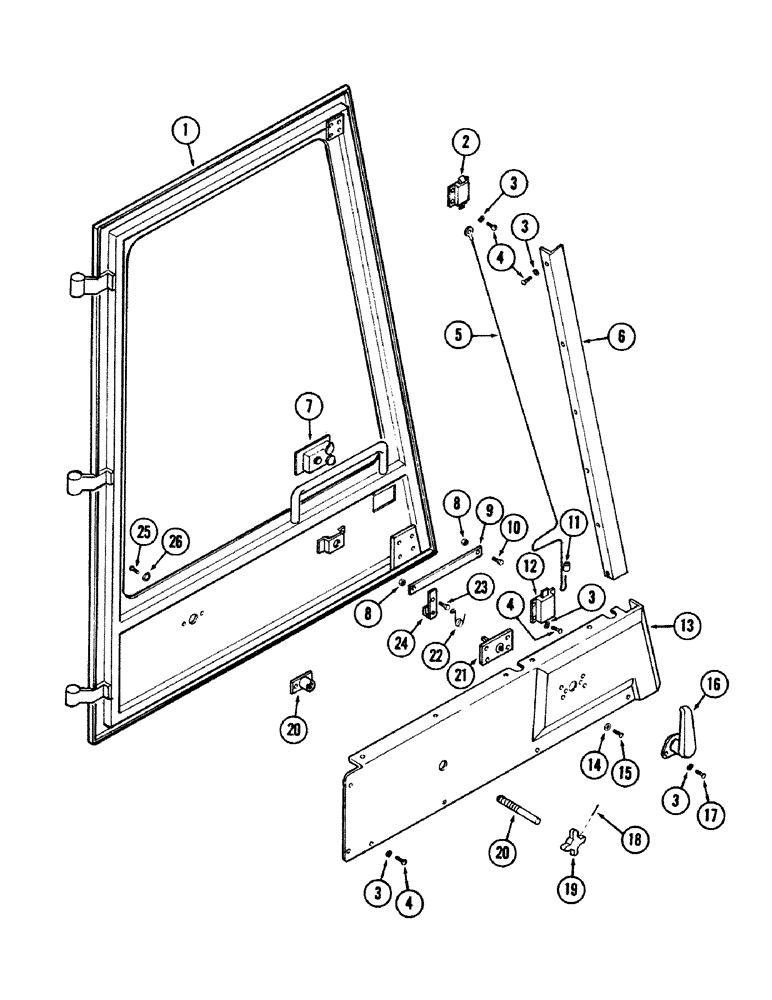

Запчасти Case 40 (096) - CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

S956135

CAB

ASSY, Includes: Ref. 1 - 26

1шт.

S956346

DOOR ASSY.

DOOR ASSY - (Includes Ref. 7, 8 and 10 on Figure 94), Includes: Ref. 1 - 26

1шт.

1

S117648

DOOR

1шт.

2

S239684

LATCH

- upper

1шт.

3

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

29шт.

4

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- No. 10 NC x 1/2"

27шт.

5

S117548

METAL ROPE

CABLE - 108" long

1шт.

SHOULD READ S240502

1шт.

6

S616084

GUARD

1шт.

7

S239629

LATCH

- (Welded)

1шт.

8

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

9

S117519

LINK

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

S117815

SLEEVE

- splicing

1шт.

12

S239685

LATCH

- lower

1шт.

13

S616087

PANEL

1шт.

14

195-518

WASHER,1/4", SAE

- flat, 1/4"

4шт.

15

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

SCREW - 1/4" NC x 3/4"

4шт.

16

S515131

HANDLE

1шт.

17

174-97

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

2шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

S117719

KNOB

1шт.

20

S239655

CATCH

- door

1шт.

21

S118268

PLATE

- handle

1шт.

KEY STOCK IS NOT A PART OF PLATE.NOTE: KEY IS S118653

1шт.

22

S117639

SPRING

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

S117526

LATCH

1шт.

25

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4" NC x 1/2"

2шт.

26

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4"

2шт.
