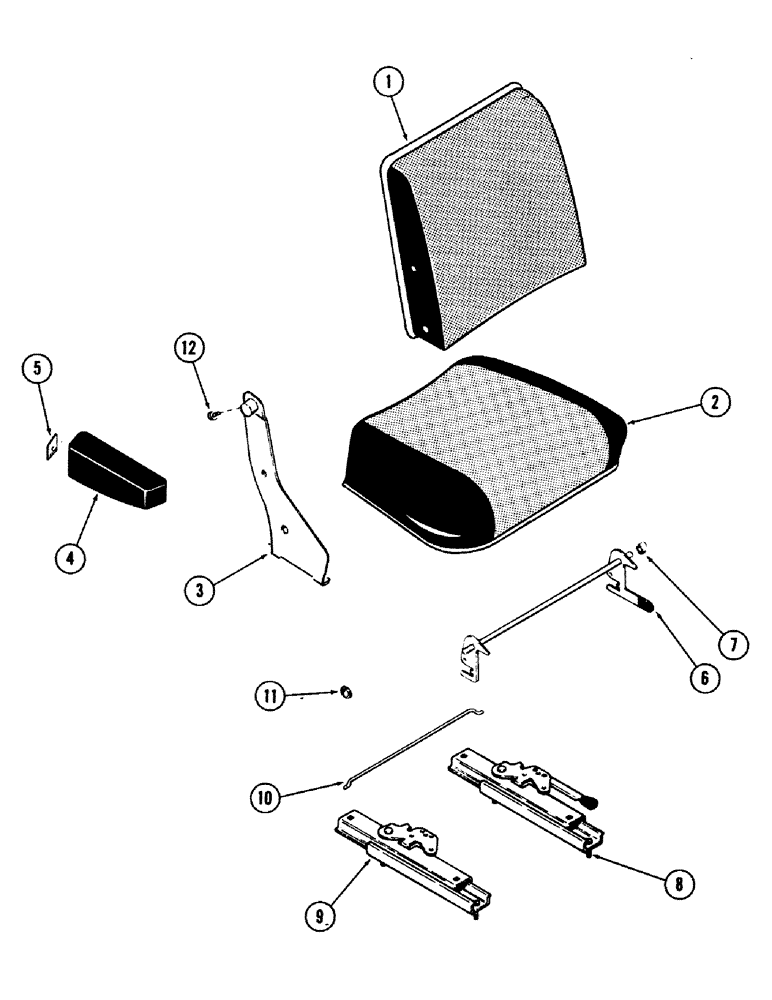

Запчасти Case 40 (088) - OPERATORS SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

S612692

SEAT ASSY.

SEAT, Includes: Ref. 1 - 12

1шт.

1

S114280

BACKREST

CUSHION, back rest

1шт.

2

S114279

CUSHION

seat

1шт.

3

S114281

BRACKET, side - (Right hand) - (Illustrated)

1шт.

S114282

BRACKET

- side - (Left hand) - (Not illustrated)

1шт.

4

A45489

ARMREST

- (Right hand) - (Illustrated)

1шт.

A45488

ARMREST

- (Left hand) - (Not illustrated)

1шт.

5

A45584

COVER

PLATE, cover - (Right hand) - (Illustrated)

1шт.

A45583

PLATE

cover - (Left hand) - (Not illustrated)

1шт.

6

S114283

ASSEMBLY

TILT ASSEMBLY

1шт.

7

A45482

BUSHING

SPACER, tilt shaft

2шт.

8

S114284

SLIDE

ASSEMBLY, with handle

1шт.

9

A45523

SLIDE

ASSEMBLY

1шт.

10

S114285

ROD

slide latch connecting

1шт.

11

A45110

WASHER

SPACER

2шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest Hex Soc Hd, 1/4"-20 x 3/8"

2шт.
