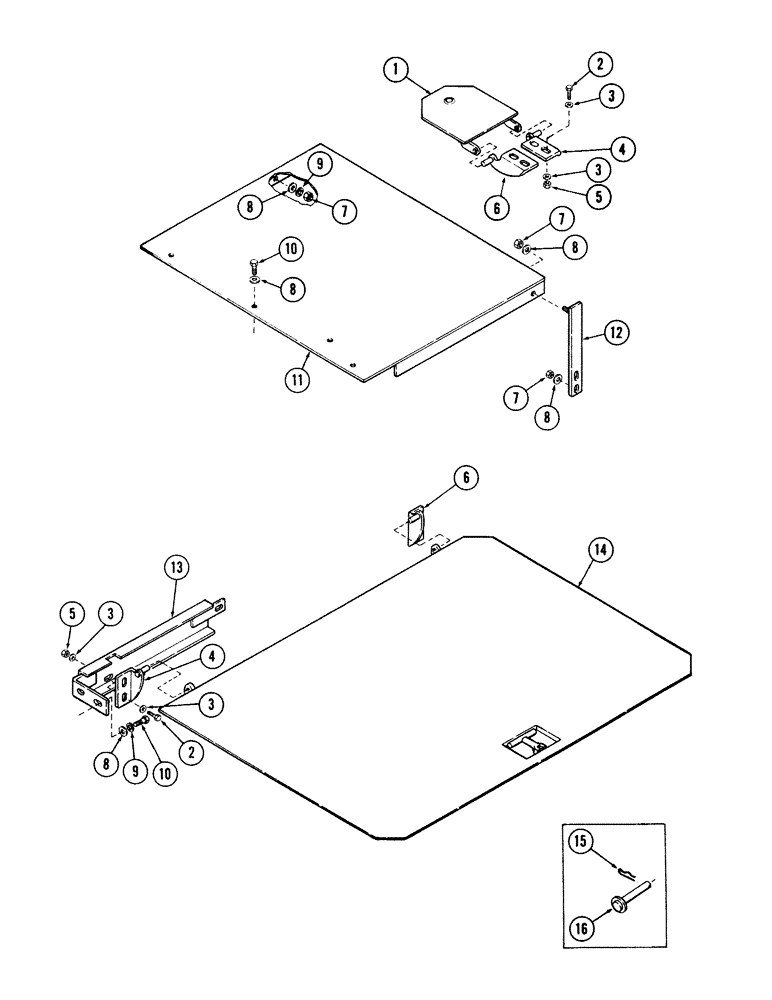

Запчасти Case 40 (278) - OPTIONAL VANDAL TOP GUARD GROUP, (USED WITH TURNTABLE SHROUDING) (88) - ACCESSORIES

1

S229722

COVER - (Left side)

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat - 3/8"

1шт.

4

S221455

BRACKET

2шт.

6

S222540

BRACKET

2шт.

5

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

1шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2" NC

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

11

S508739

SHROUD - (Left front)

1шт.

12

S226309

BRACKET

1шт.

13

S511233

CHANNEL

1шт.

14

S610795

DOOR - (Right front top)

1шт.

15

A70250

PIN

hair

1шт.

16

S217887

PIN

- (Used with item14 to lock door open)

1шт.

REFER TO ILLUSTRATION PAGE REF 14. THE LATCH SHOWN IS PART S219346

1шт.
