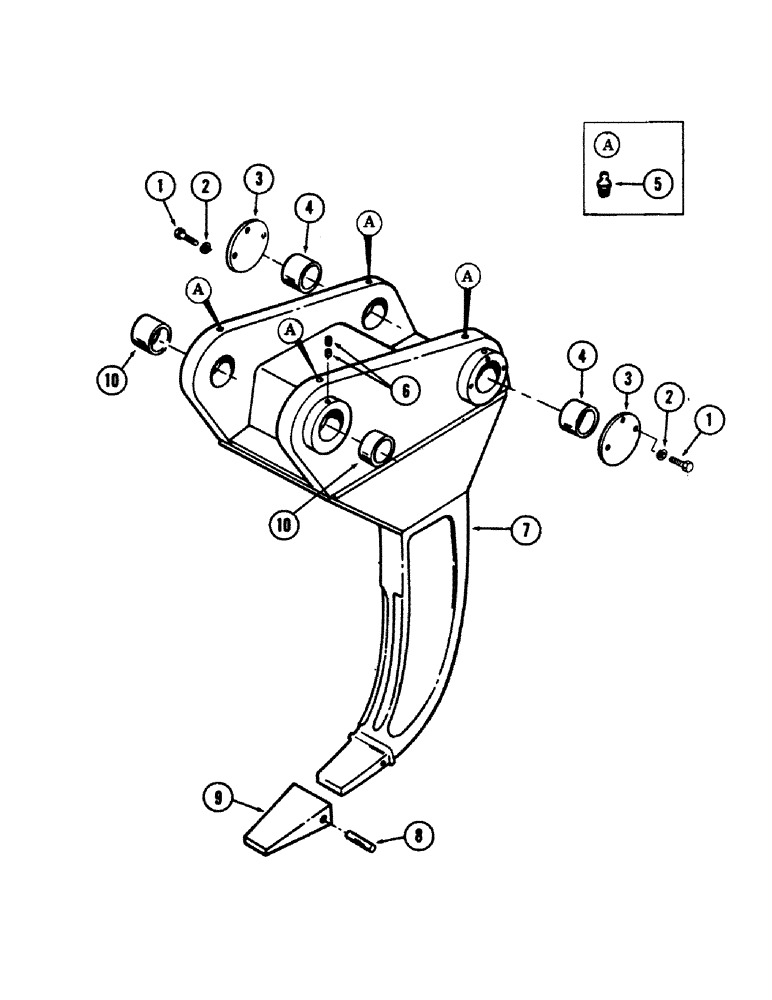

Запчасти Case 40 (132) - RIPPER TOOTH (84) - BOOMS, DIPPERS & BUCKETS

1

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- 3/8" NC x 7/8" Gr 8

6шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

S106642

COVER

2шт.

4

S234928

BUSHING

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

4шт.

6

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, set - 3/8" NC x 3/8" - (Cone point)

4шт.

7

S609798

RIPPER TOOTH, Includes: Ref. 8 and 9

1шт.

8

138-310

LOCK PIN,1/2" x 3", Slotted

PIN, 1/2" x 3", Slotted

1шт.

9

S25334

POINT

TIP, replaceable

1шт.

10

S234482

BUSHING

2шт.
